HSD ES779 - Technical Datasheet Asynchronous ES789 15;18 Kw 380 V 400 Hz with Motor Rating Plate FNZ4101849

3 Technical specifications and main parts
72
HSD S.p.A. © - h0102k01a.fm120718

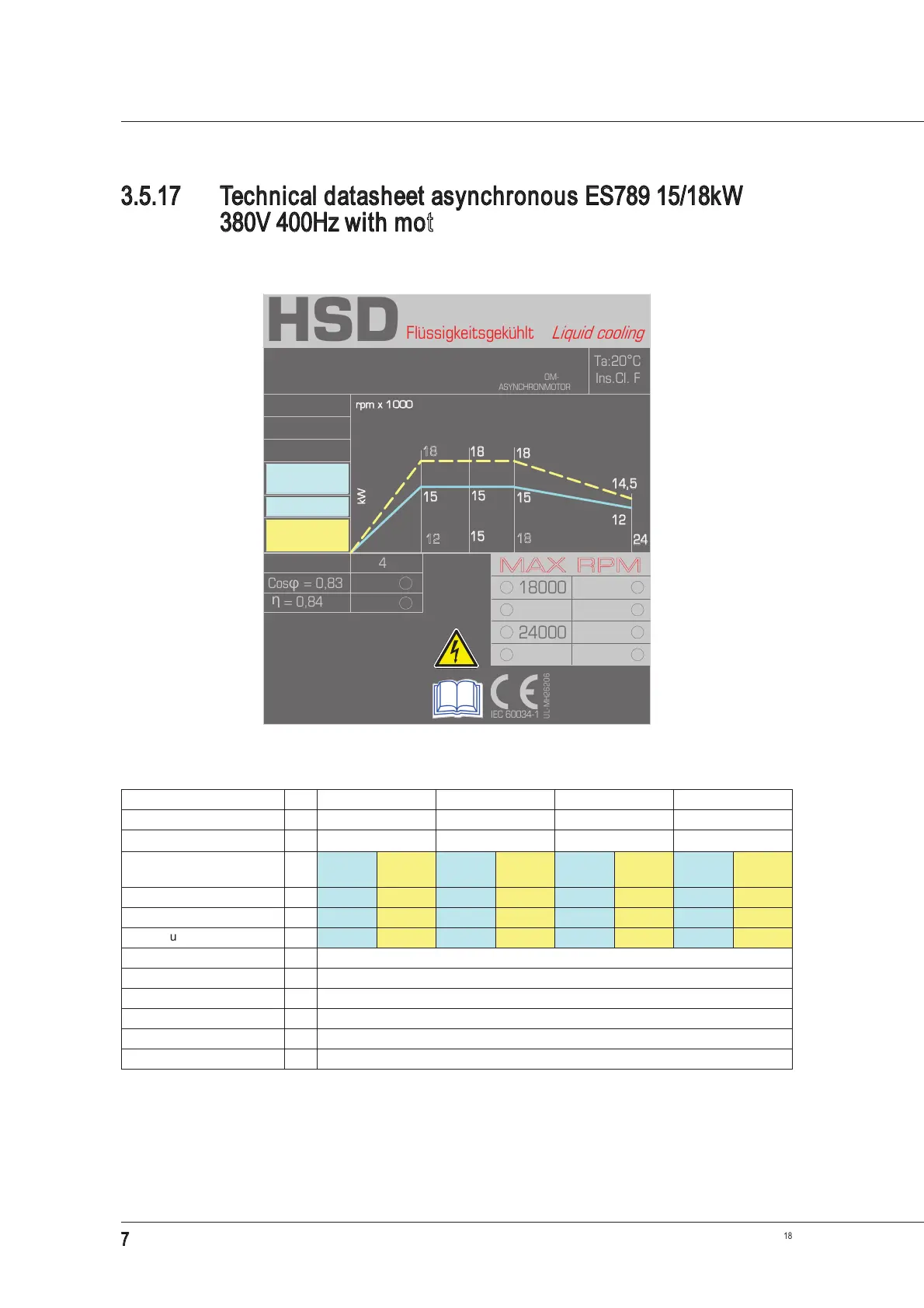

3.5.17 Technical datasheet asynchronous ES789 15/18kW
380V 400Hz with motor rating plate FNZ4101849
Motor rating plate
FNZ4101849 (SP.119.150.45)
Rated voltage V 380 380 380 380
Rated frequency Hz 400 500 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 15,000 18,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
15 18 15 18 15 18 12 14.5
Rated torque Nm
11.9 14.3 9.5 11.5 8 9.5 4.8 5.8
Rated current A
30 35.5 31 35 30 36 25 30
Rated efficiency K 0.84
Power factor cos M 0.83
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
400Hz
12000 rpm
380
V
22000
MAX RPM
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
18 kW-24,1 Hp
30
A
Kg
36 Kg
IP 54
FNZ4101849
ES 789L 4P 15,00kW
18
12
18
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
kW
15
rpm x 1000
18
Liquid cooling
Flussigkeitsgekuhlt
..
..
24000
18000
24
14,5
15
15
12
15
18
= 0,84
Cos = 0,83
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
