HSD ES779 - Technical Datasheet Asynchronous ES789 15;17 Kw 380 V 400 Hz

3 Technical specifications and main parts
62
HSD S.p.A. © - h0102k01a.fm120718

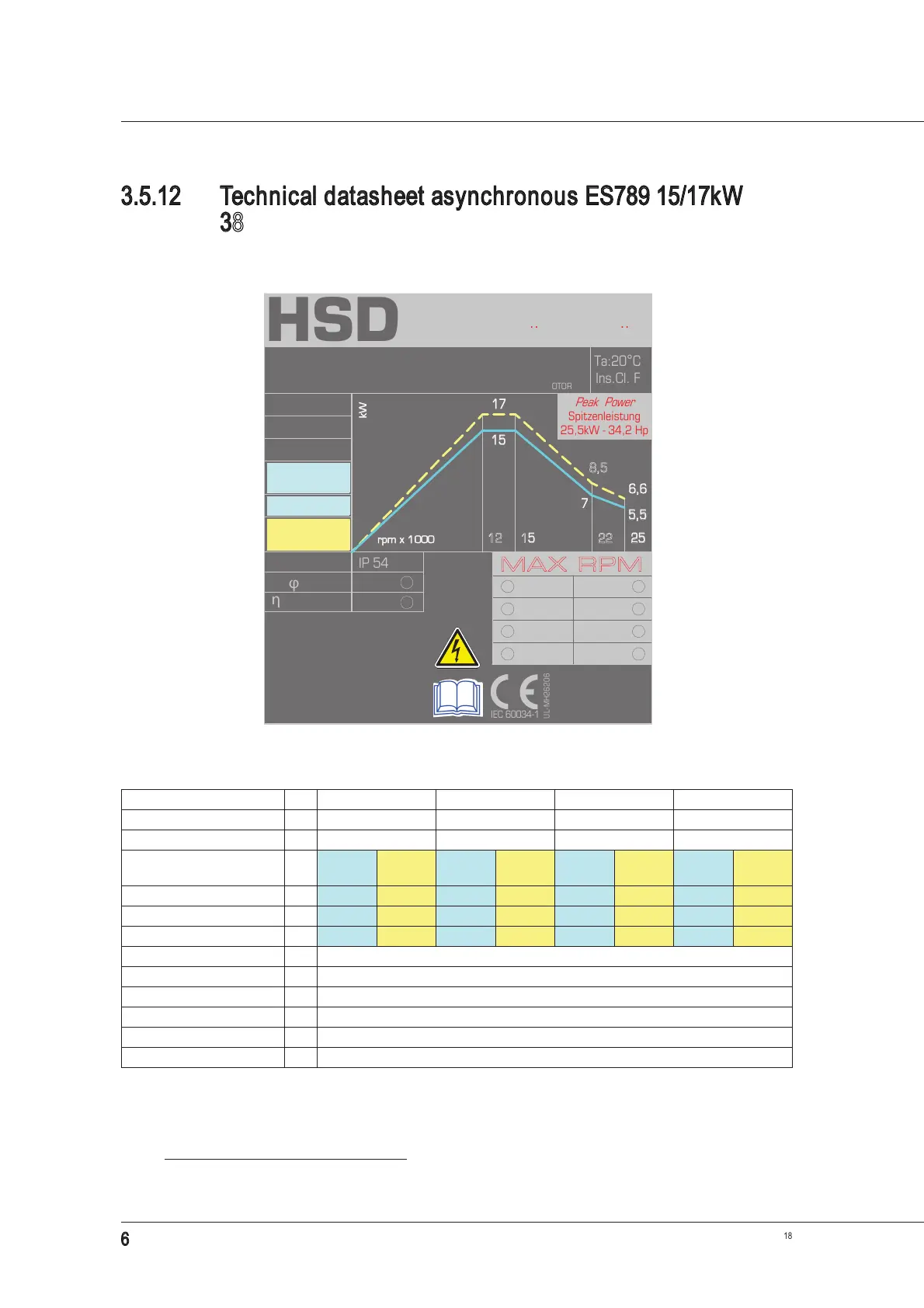

3.5.12 Technical datasheet asynchronous ES789 15/17kW
380V 400Hz*
Motor rating plate
H1423H0245 (SP.120.150.45)
*
Discontinued.
Rated voltage V 380 380 380 380
Rated frequency Hz 400 500 733 833
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 15,000 22,000 25,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
15 17 15 17 7 8.5 5.5 6.6
Rated torque Nm
12 13.5 9.6 10.8 3 3.6 2.1 2.5
Rated current A
34 38 34 38 16.5 20 15.9 18.8
Rated efficiency K 0.8
Power factor cos M 0.8
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
400Hz
12000 rpm
380V
25000
22000
MAX RPM
8,5
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
17 kW-22,8 Hp
32,9 A
Cos = 0,8
= 0,8
Kg
36 Kg
Liquid cooling
H1423H0245
Flussigkeitsgekuhlt
ES 789L 4P 17,00kW H1
12 15
22
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
rpm x 1000
kW
Peak Power
Spitzenleistung
25,5kW - 34,2 Hp
..
..
25
17
6,6
IP 54
15
7
5,5
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
