HSD ES779 - Technical Datasheet Asynchronous ES789 18;21.5 Kw 380 V 333 Hz

3 Technical specifications and main parts
84
HSD S.p.A. © - h0102k01a.fm120718

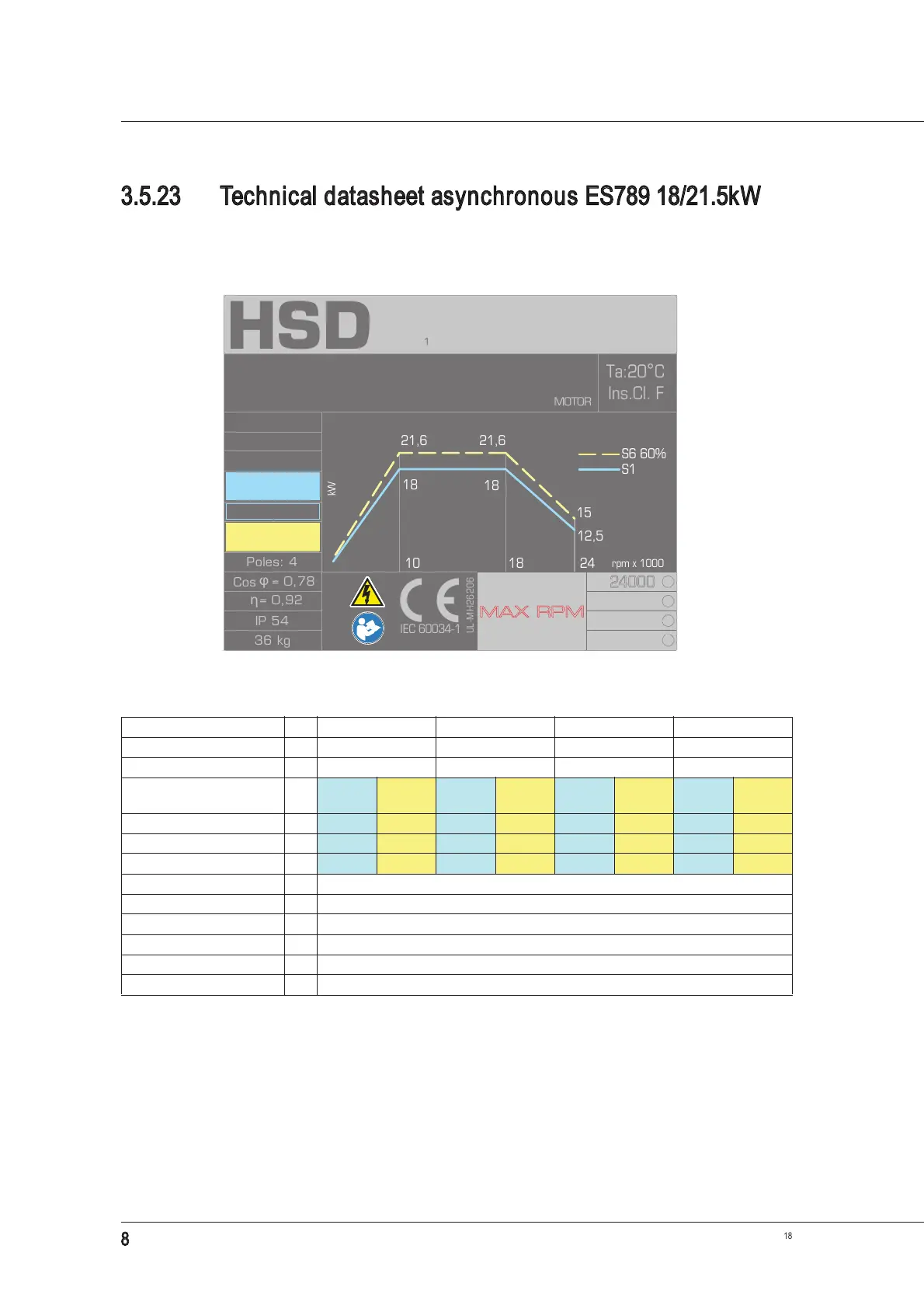

3.5.23 Technical datasheet asynchronous ES789 18/21.5kW
380V 333Hz
Motor rating plate
FNZ4102120 (SP.119.150.47)
Rated voltage V 380 380 380 380
Rated frequency Hz 333 466 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 10,000 14,000 18,000 24,000
Duty type
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
Rated power kW
18 21.6 18 21.6 18 21.6 12.5 15
Rated torque Nm
17.2 20.6 12.3 14.7 9.5 11.5 5 6
Rated current A
37 43.1 34 42 36 48 27 33
Rated efficiency K 0.92
Power factor cos M 0.78
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
ES789 4P 18 kW
Flüssigkeitsgekühlt
Liquid cooling
FNZ4102120
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
380V
333Hz
10000 rpm
S1 continuous
18kW
S6 40%
21,6kW
37 A
24000
MAX RPM
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
Poles: 4
= 0,92
IP 54
36 kg
Cos
= 0,78
4201
18
21,6
12,5
15
21,6
rpm x 1000
kW
S6 60%
S1
18
18
HSD
η
φ
UL-MH26206
IEC 60034-1
Ta:20 ° C
Ins.Cl. F
