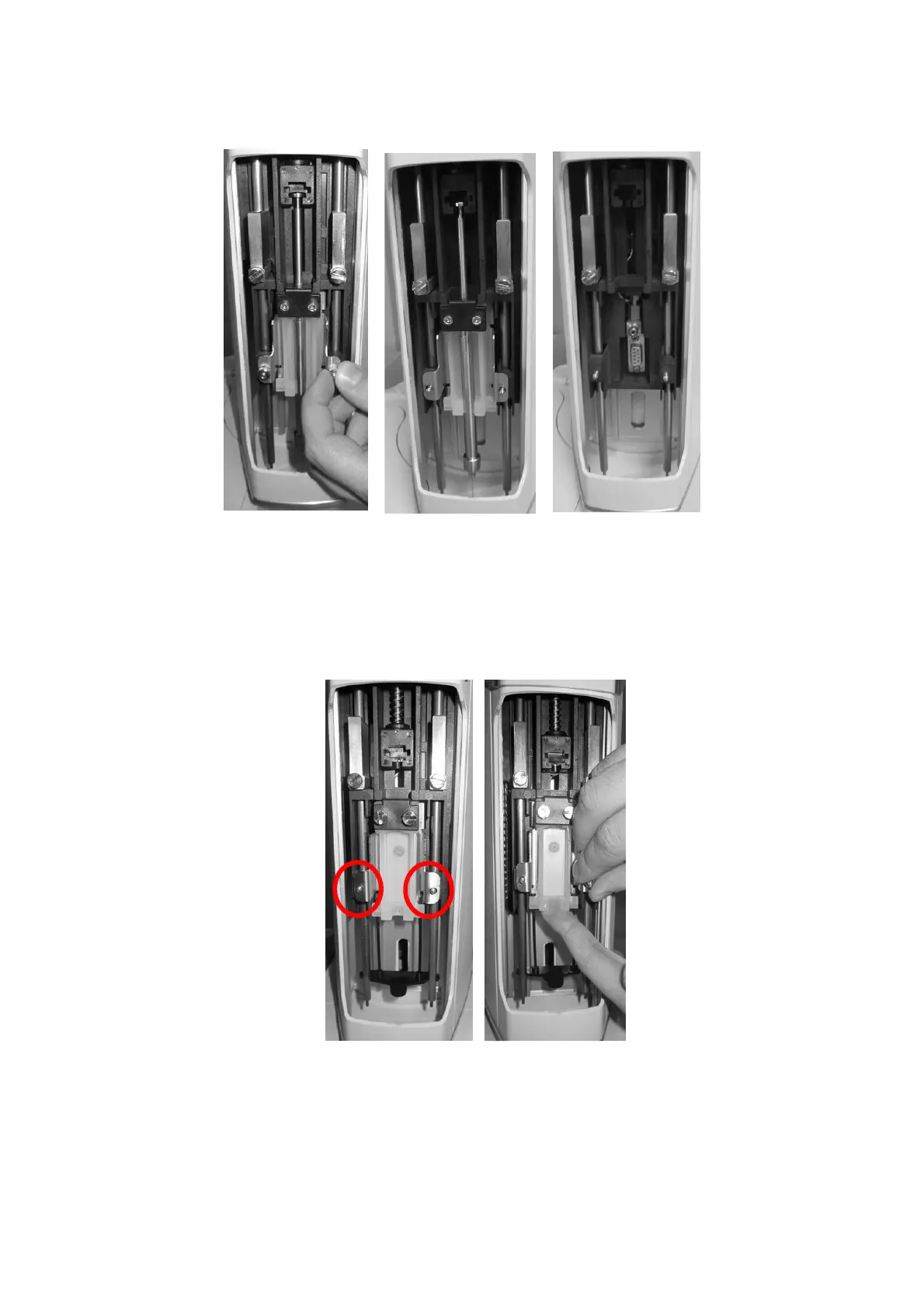

Figure 154: SPME Fiber holder removal
b) Install the syringe holder for liquid configuration. Mount the liquid syringe-holder by
aligning the holes of the syringe holder to the threaded inserts (see figure below - a), and
anchoring the intermediate needle guide. Finally fix it with the nuts keeping the holder
pressed upwards (see figure below - b):
Figure 155: Liquid syringe holder mounting
b
a
e
d
c
