HTA HT2800T - Page 197

HT2800T_en_c.doc Page 197 of 275
a
b
d
c

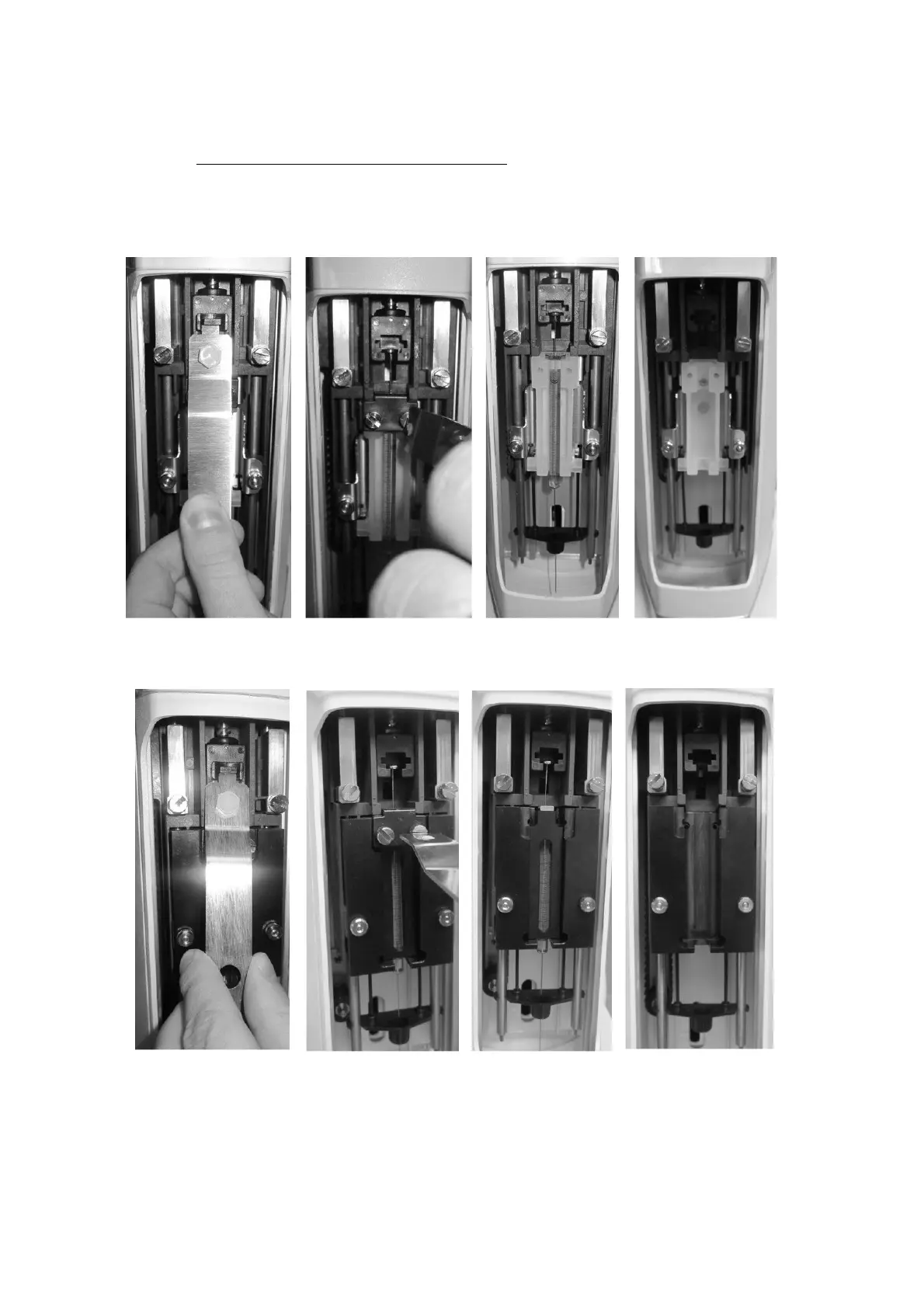

a) Remove the syringe for liquid configuration: remove the plunger locker by pulling it out
using the syringe pointer (see figures below - a); remove the syringe locker as shown in
the figure below (see figures below - b) and finally remove the syringe (see figures
below - c and d).
Figure 171: Liquid syringe removal
Figure 172: Liquid syringe holder removal (syringeID system purchased and enabled)
d
c
b
a
