HT2800T_en_c.doc Page 236 of 275

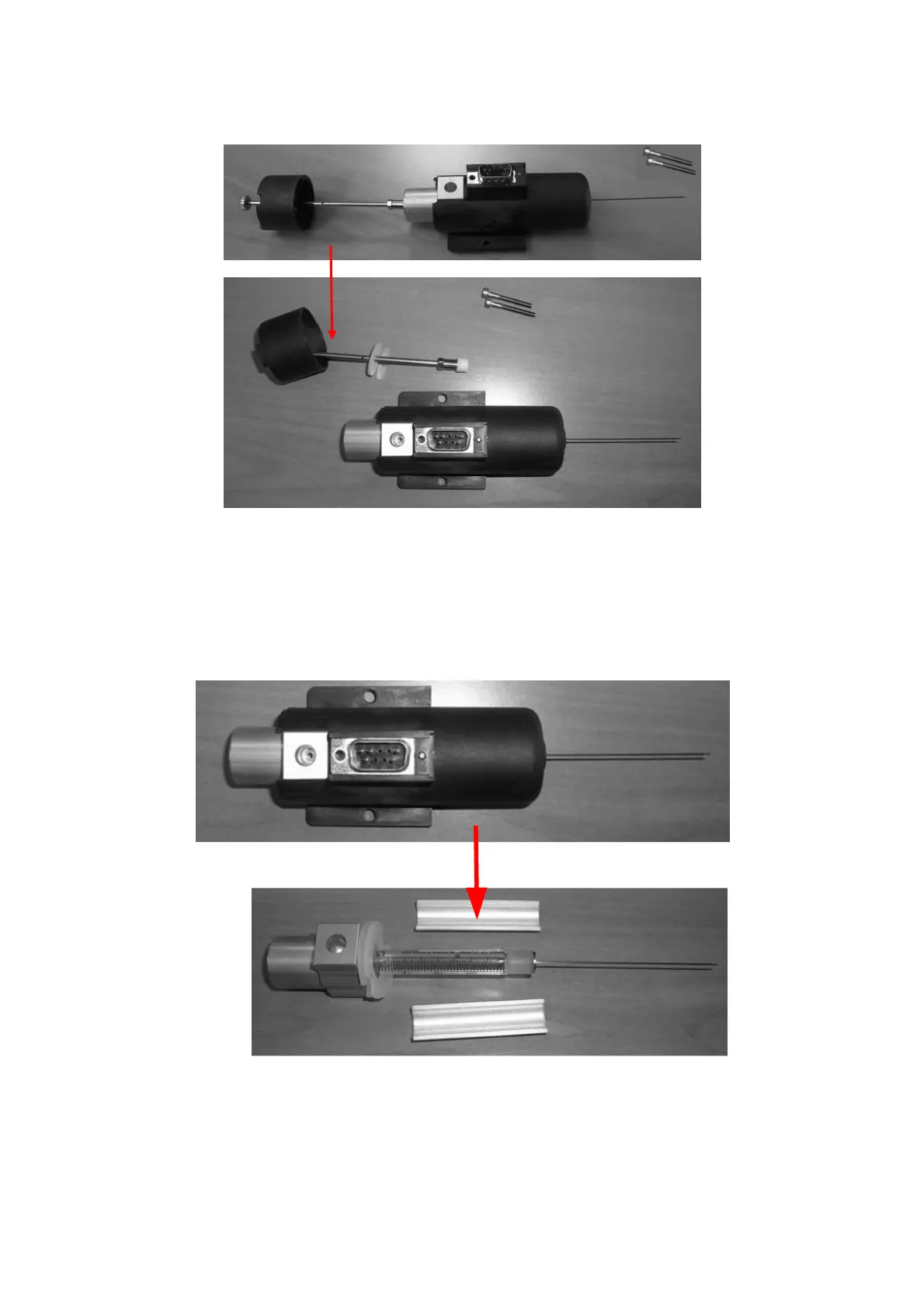

Figure 190: Removing the upper cover and the syringe plunger
3) Extract the syringe barrel (number 8), with the insulating gasket (number 5 in figure
below ), the syringe holder (number 6 in figure below ), the upper spacer (number 7 in
figure below) and the lower spacers (number 9 in figure below ) from the heating body
(number 4 in figure below ). This operation is shown below:
Figure 191: Syringe warmer assembly disassembling_1
4) The insulating gasket (number 5 in figure below ), the syringe holder (number 6 in figure
below), the upper spacer (number 7 in figure below ), lower spacers (number 9 in figure
7
6
4
9
7
6
8
5
9
1
2 3 4
