HT2800T_en_c.doc Page 24 of 275
When configured for SPME the “A” position is used for the derivatizing agent. If 10 or 6ml
sample vials are used instead of 20ml sample vials the proper spacers must be installed in the
oven positions.

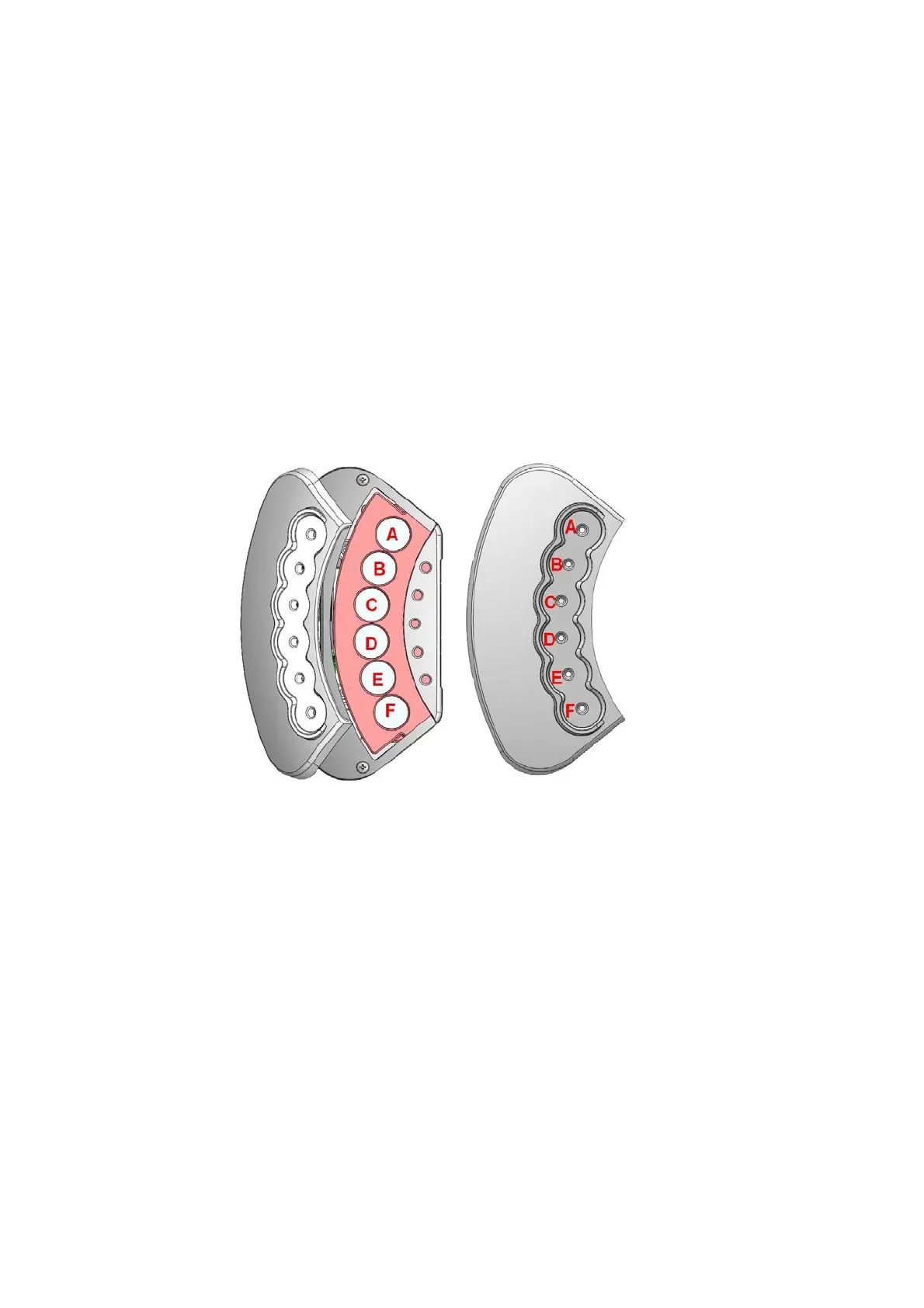

In the liquid mode this oven represents the location for solvent vials. The solvent vial positions
are labelled A-F. Better position for solvent placing are from B to E . For A and F positions, the
lack of the solvent vial can not be detected as an error (see paragraph 8.8 “Lack of a Vial (waste
or solvent vial for liquid mode, washing vial for SPME mode)”. In these positions it is necessary to
place the supplied black spacers before installing the 10ml solvent vials. For solvent vials
specifications see paragraph 12.2.3 “Solvent and waste vials “.
Left configuration
Right configuration
