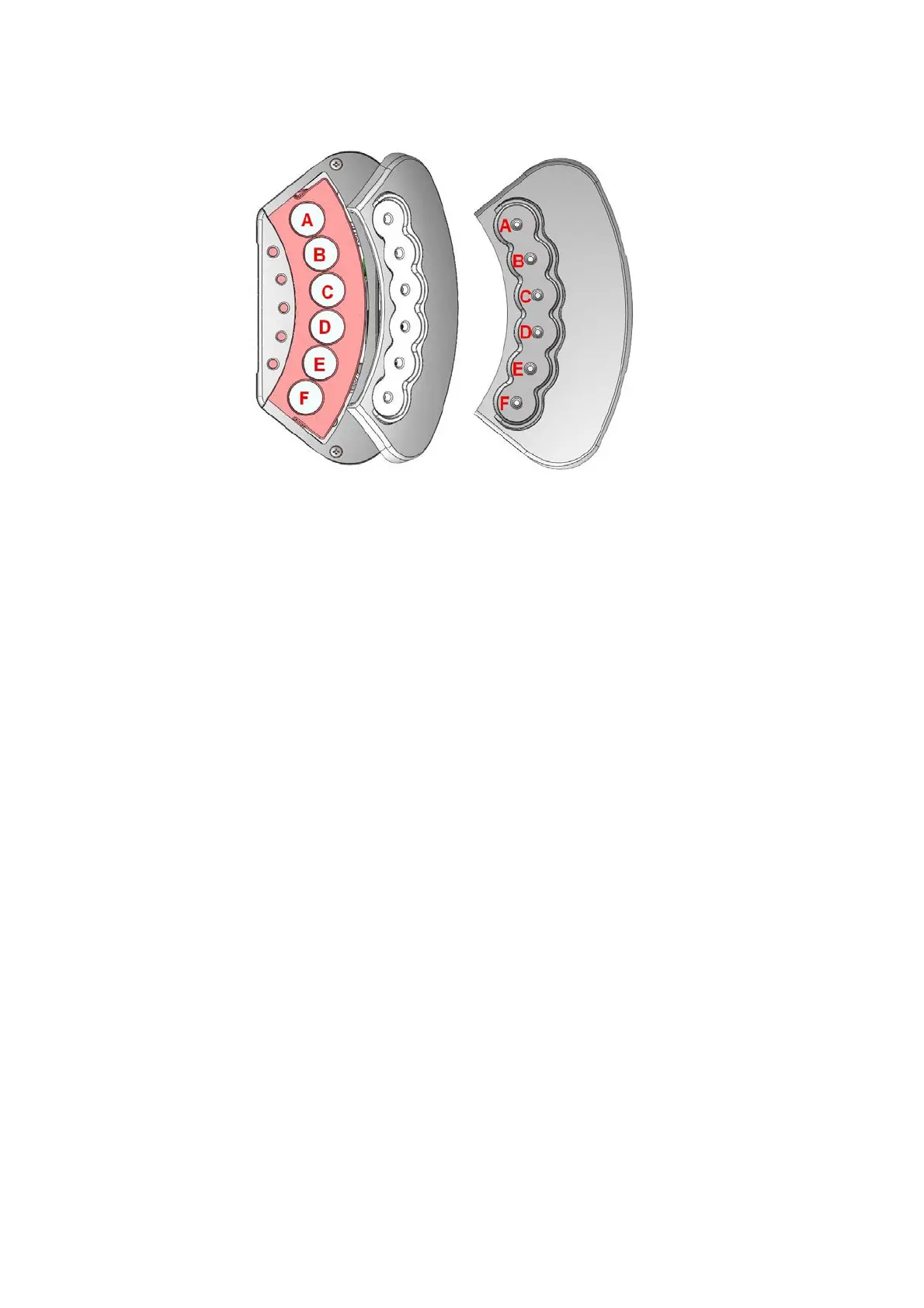

Figure 5: HT2800T/HT2850T Incubation oven/ Location for solvent vial

In the left figure, the oven is shown open, while in the right figure it is shown closed.
