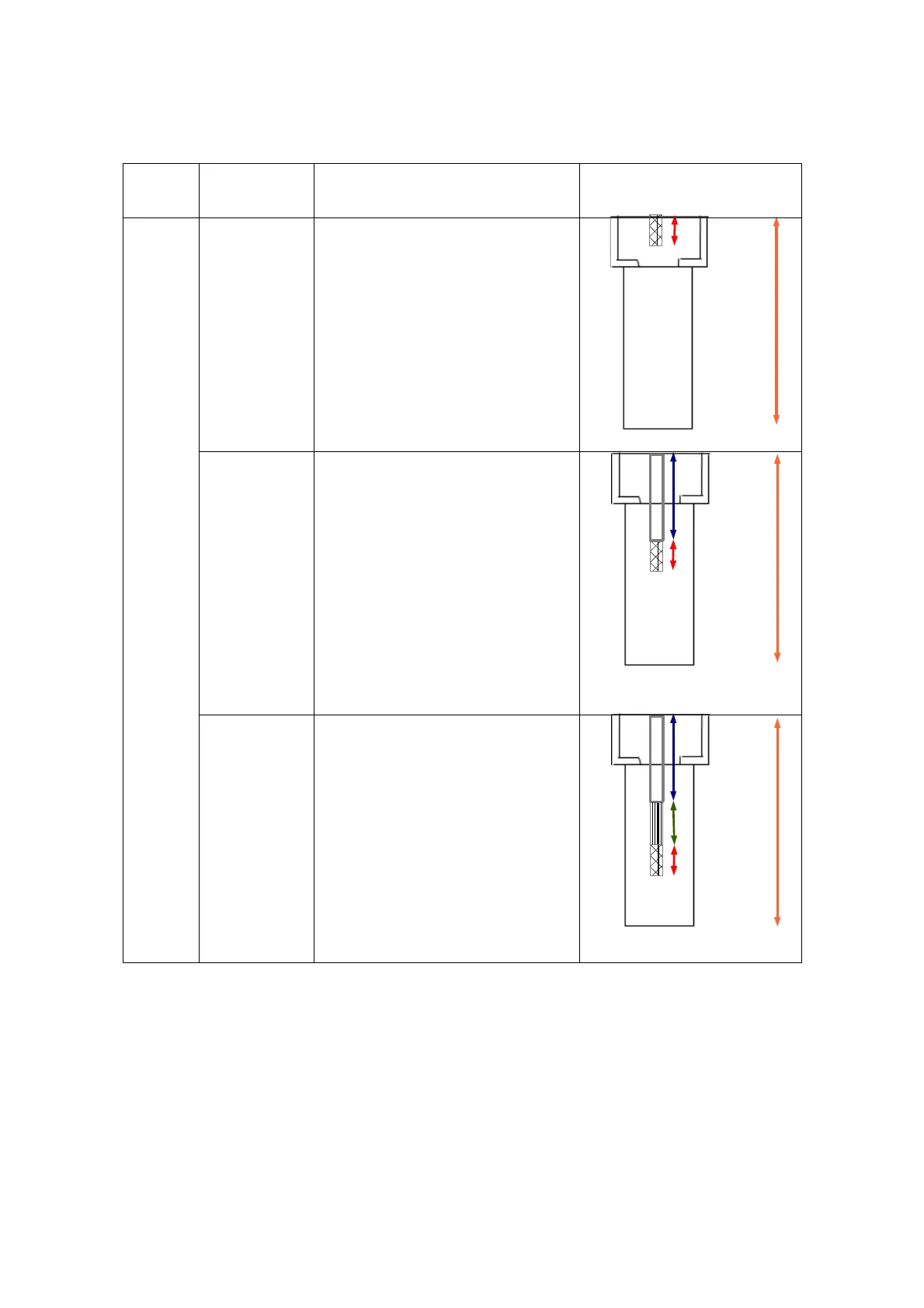

Fiber
lenght
Injection
depth
(mm)
10mm
<10 The instrument moves the needle 1
mm under the vial locator, then
expose Fiber moving only the
plunger.
0-10mm fibre
10<depth<59 The instrument moves the needle
10 mm over the final position, then
moves the plunger to expose 10 mm
of Fiber.
0-49mm needle
10mm fibre
59<depth<77 The instrument moves the needle
until 49 mm, moves the plunger to
expose 10 mm of Fiber and then
from 0 mm to 18 mm of Fiber-holder
to reach the right depth.
49mm needle
0-18mm
Fibre holder
10mm fibre
