Networking Requirements
As shown in Figure 3-9, all the Layer 2 switches belong to the same cluster. Administrator-1 is
the administrator switch of the cluster and other switches are member switches. The member ID
of Member-2 is 2 and the member ID of Member-3 is 3.
Member switches Member-2 and Member-3 are required to be restarted.

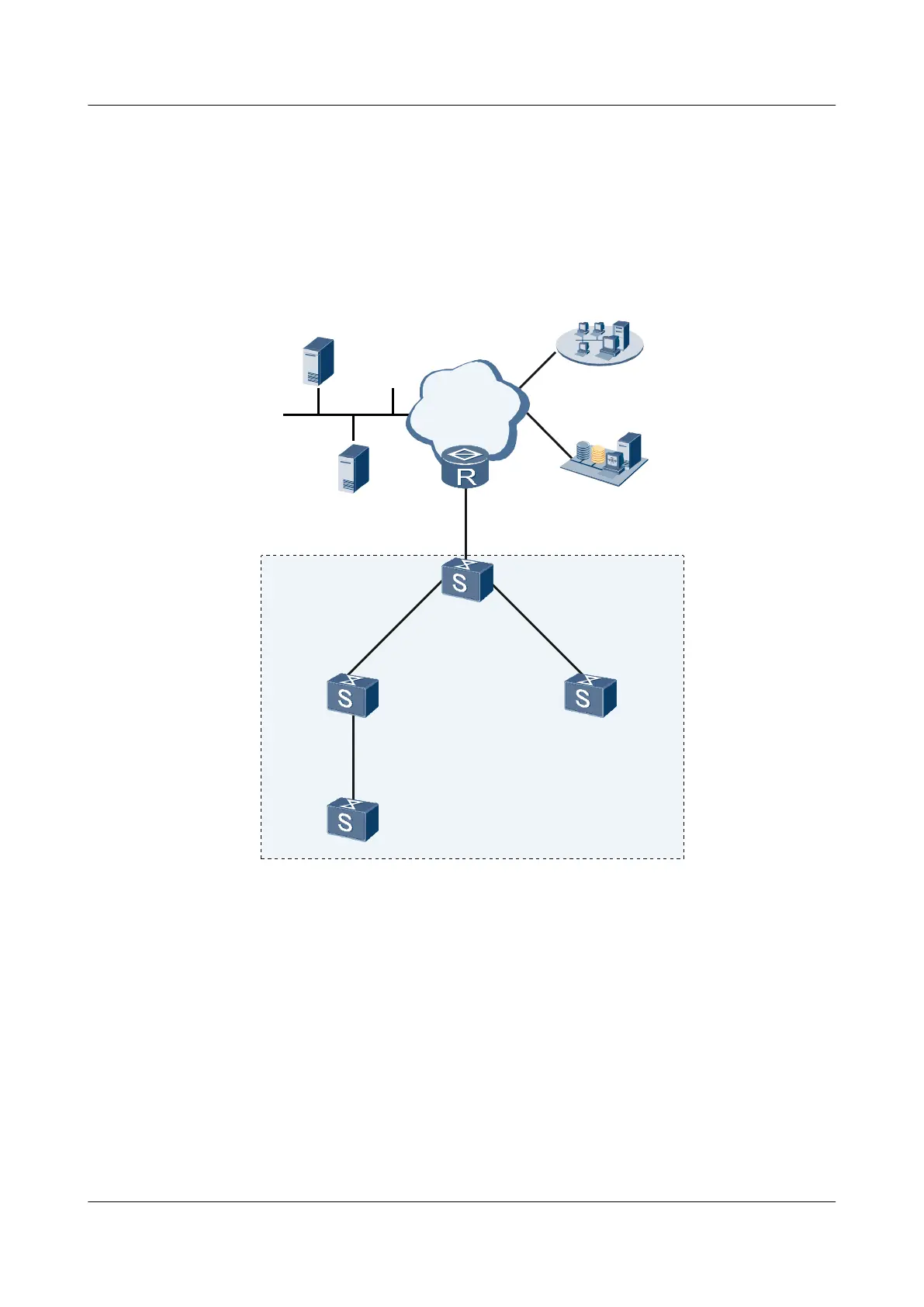

Figure 3-9 Networking diagram of configuring the batch restart function for an HGMP cluster
IP/MPLS
core
......
FTP Server
2.0.0.1/8
SFTP Server
2.0.0.2/8
NM station
3.0.0.1/8
Log station
4.0.0.1/8
Administrator-1
10.0.0.1/8
Member-1
Member-2
Member-3
10.0.0.4/8
GE0/0/1 GE0/0/2
GE0/0/1
GE0/0/2
GE0/0/1
GE0/0/1
Cluster
GE0/0/3
GE0/0/1
1.0.0.2/8
Device MAC Address Device MAC Address
Administrator-1 0001-0001-0001 Member-1 0002-0002-0002
Member-2 0003-0003-0003 Member-3 0004-0004-0004
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a cluster according to the steps described in 3.6.1 Example for Configuring Basic
HGMP Functions for a Cluster.
2. Configure batch restart on the administrator switch.
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 3 HGMP Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
169

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
