Huawei Quidway S5700 Series User Manual

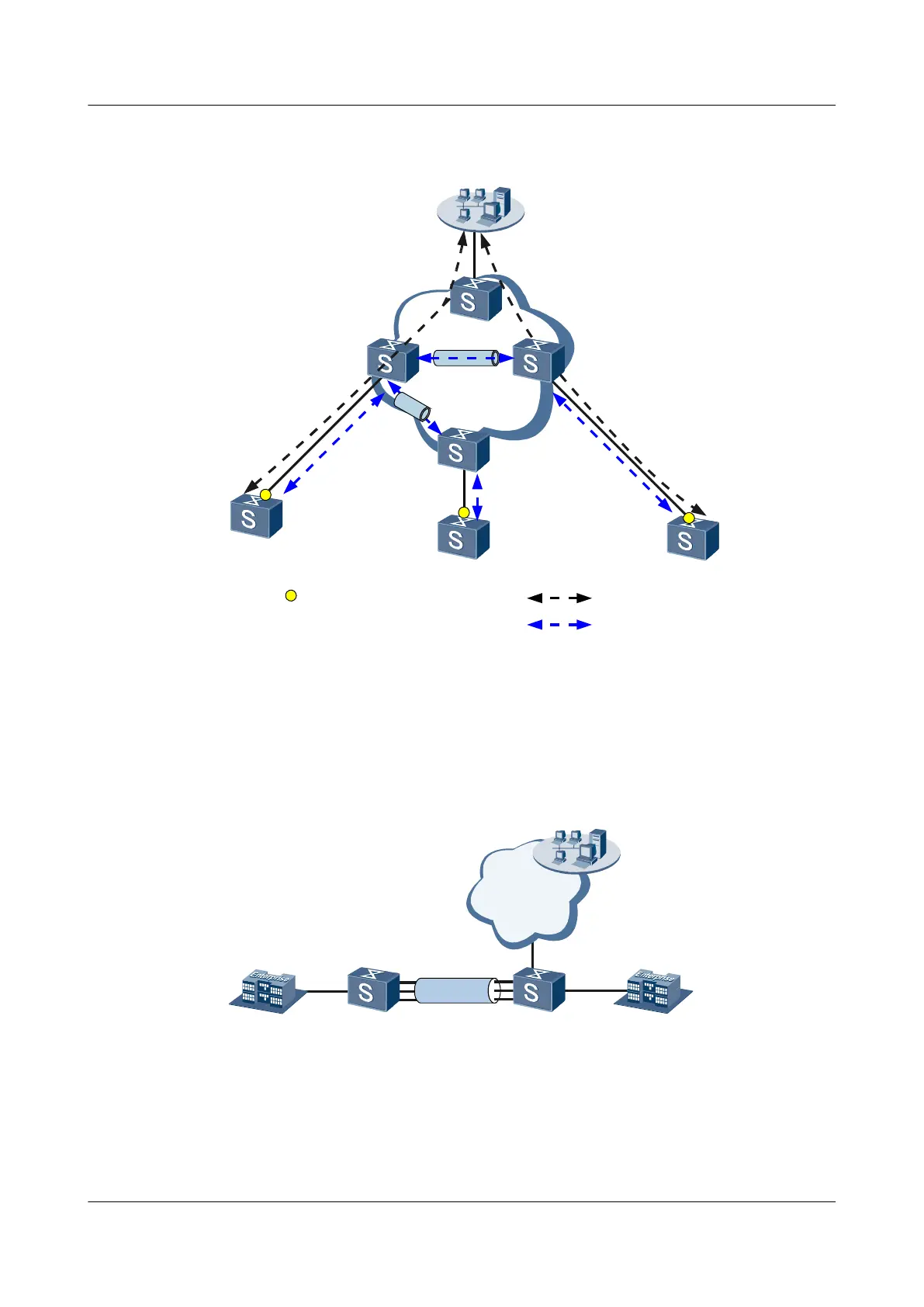

Figure 2-5 Each interface has multiple neighbors
SwitchE
NMS
SNMP
LLDP interface
SNMP
LLDPDU
LLDPDU
LLDPDU
NMS: Network Management System
LLDPDU
SwitchD
SwitchA
SwitchB SwitchC
SwitchF
SNMP packet
LLDPDU packet
LLDPDU
10.10.10.2
10.10.10.3
10.10.10.1
The network where link aggregation is configured
As shown in Figure 2-6, a link aggregation group is configured between the switches. Each
interface in the link aggregation group has only one neighbor.
Figure 2-6 Link aggregation is configured on the network
SwitchA SwitchB
Enterprise
User
Enterprise
User
Network
NMS
Eth-Trunk
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 2 LLDP Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
51

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
