5. Remove the screws that secure the library chassis cover (Figure 166).

6. Lift the library chassis cover off vertically (Figure 167 on page 173).

a29z0021

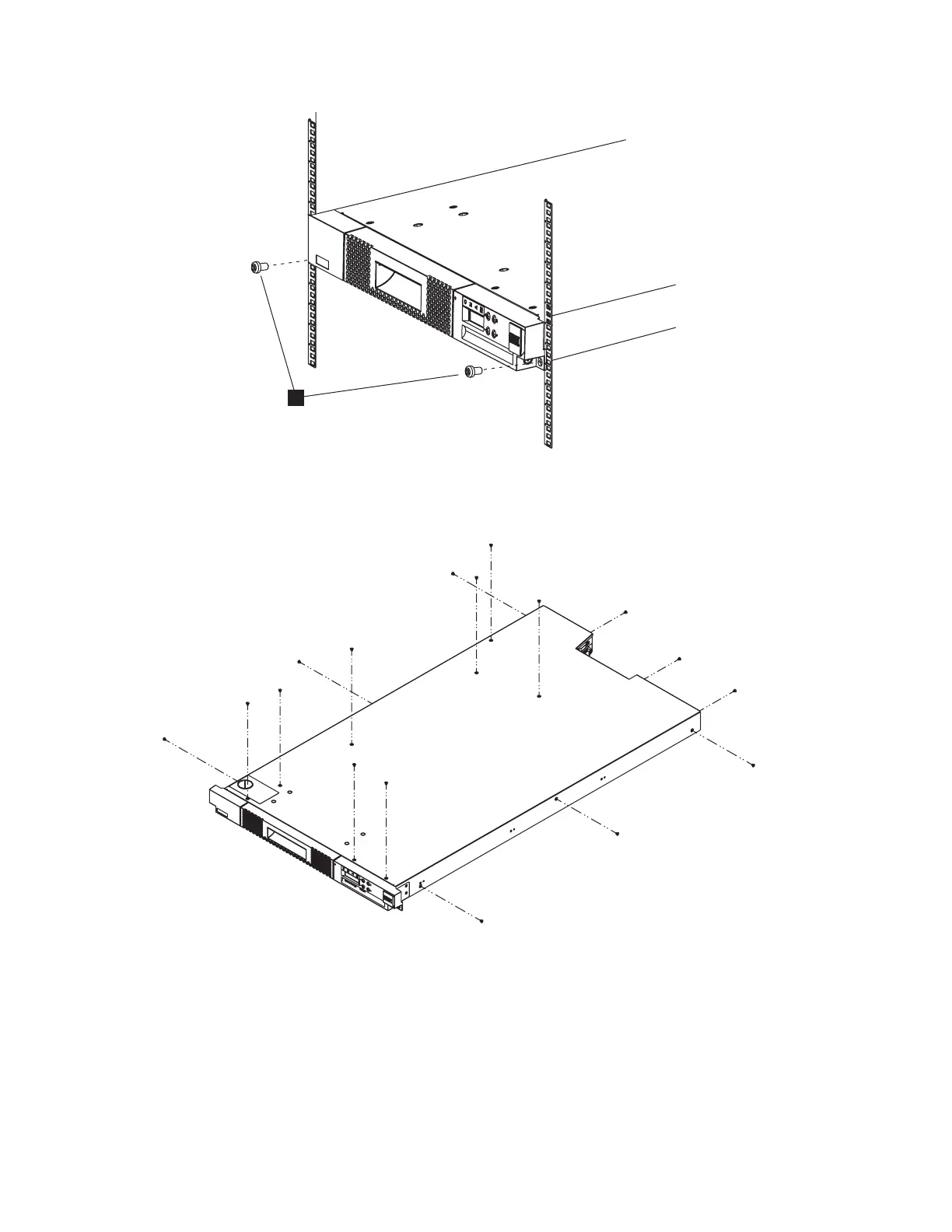

Figure 165. Removing screws at the rear of the library

a29z0054

Figure 166. Library chassis cover screw locations

172 IBM TS2900 Tape Autoloader: Setup, Operator, and Service Guide Machine Type 3572
