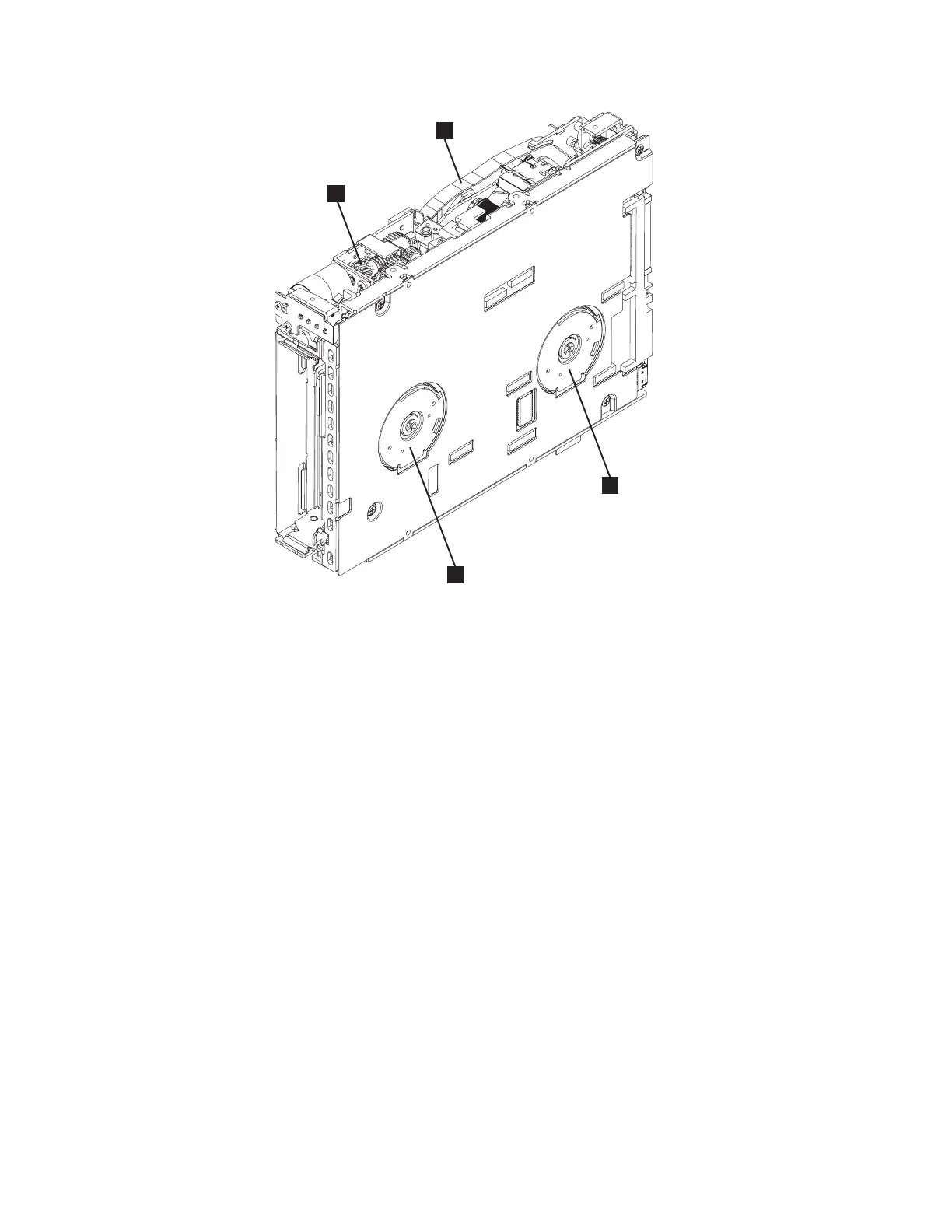

▌1▐ Loader motor worm gear ▌3▐ Takeup reel motor
▌2▐ Outer guide rail ▌4▐ Supply reel motor
7. Reassemble the drive by reversing the procedure in Step 4 in “Beginning procedure” on page 177.
8. Reassemble the library chassis. See “Ending procedure” on page 186.
Tape tangled along tape path
1. Carefully pull out excess tape and untangle.
If you find the tape to be broken, go to one of the following appropriate procedures:
v “Tape spooled off supply reel” on page 178
v “Tape pulled from or broken near leader pin” on page 180
v “Tape broken in mid-tape” on page 181
2. Set the drive on its left side with the head and tape path facing up.
Figure 176. Rewinding tape into cartridge
182 IBM TS2900 Tape Autoloader: Setup, Operator, and Service Guide Machine Type 3572
