▌1▐ Threader intermediate gear ▌3▐ Loader motor worm gear
▌2▐ Threader mechanism gear
5. As the leader pin is secured in the cartridge, the leader pin retention spring clips click into place. If
you do not hear the click, continue rolling until the threader intermediate gear (▌1▐ in Figure 179)
stops. The LBA is in the correct position.
Note: Be sure to keep tension on the tape as the LBA is drawn into the cartridge.
6. Rotate the loader intermediate gear (▌3▐ in Figure 179 and ▌1▐ in Figure 180) clockwise as viewed
from the front of the drive until it stops. This procedure releases the LBA leader pin.
7. Rotate the threader motor worm gear (▌1▐ in Figure 180) counterclockwise until the leader block is in
front of the read/write head. This procedure moves the LBA out of the cartridge.
▌1▐ Loader motor worm gear ▌2▐ Leader block assembly (LBA)
8. Rotate the loader motor worm gear (▌1▐ in Figure 180) counterclockwise as viewed from the front of
the drive until it stops.
9. Remove the cartridge from the cartridge loader tray.
10. Reassemble the drive by reversing the procedure in Step 4 in “Beginning procedure” on page 177.
11. Reassemble the library chassis. See “Ending procedure” on page 186.

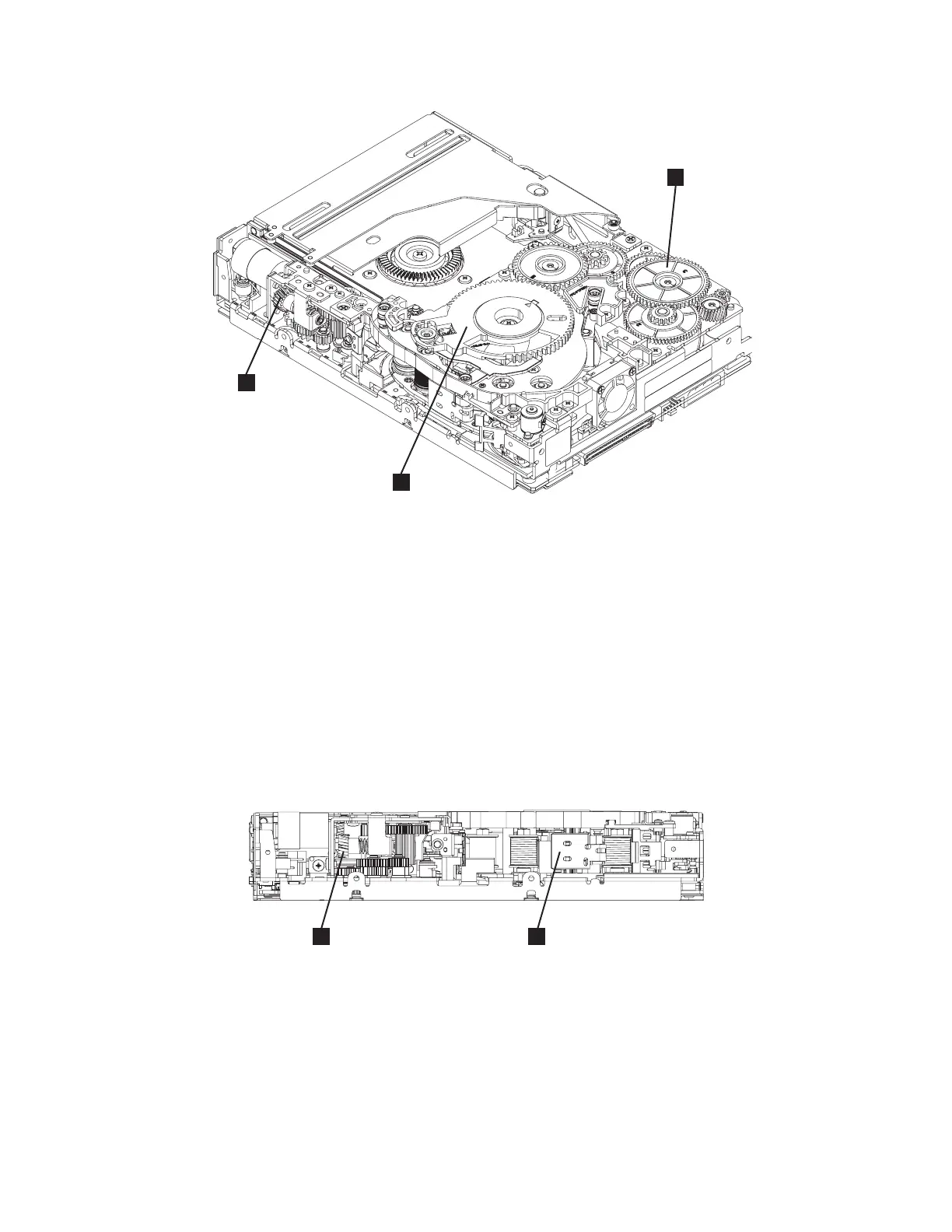

Figure 179. Drive with cover removed to reveal gear train
Figure 180. Leader Block Assembly (LBA)
Appendix A. Information for trained IBM service personnel 185
