▌1▐ Loader motor worm gear ▌3▐ Takeup reel motor
▌2▐ Outer guide rail ▌4▐ Supply reel motor
3. Turn the supply reel (▌4▐ in Figure 177) clockwise.
4. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape
guiding rollers. Turn the supply reel (▌4▐ in Figure 177) 10 turns. Ensure that you do not stretch the
tape.
5. Reassemble the library chassis. See “Ending procedure” on page 186.
No apparent failure or damage to tape
1. Set the drive on its left side with the head and tape path facing up.

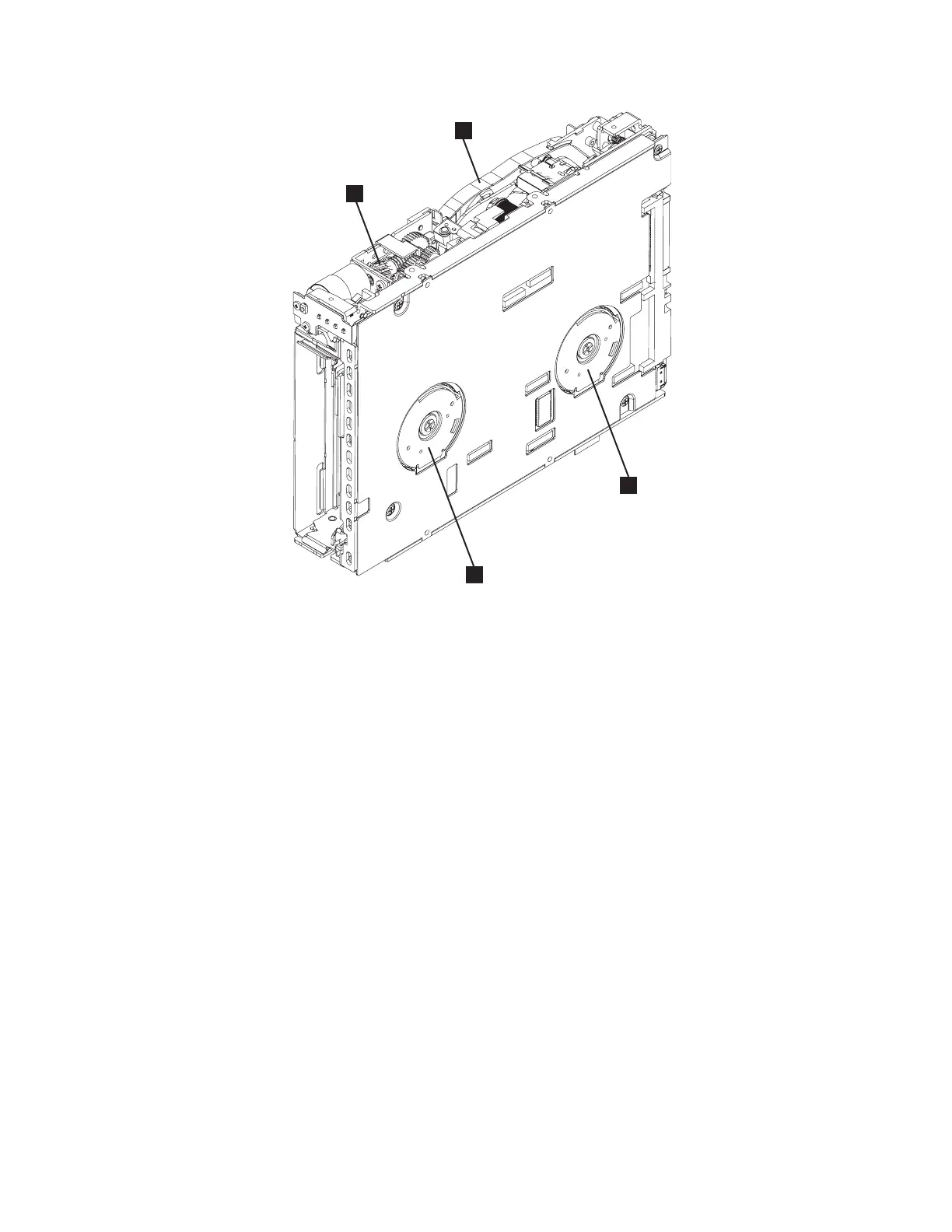

Figure 177. Rewinding tape into cartridge
Appendix A. Information for trained IBM service personnel 183
