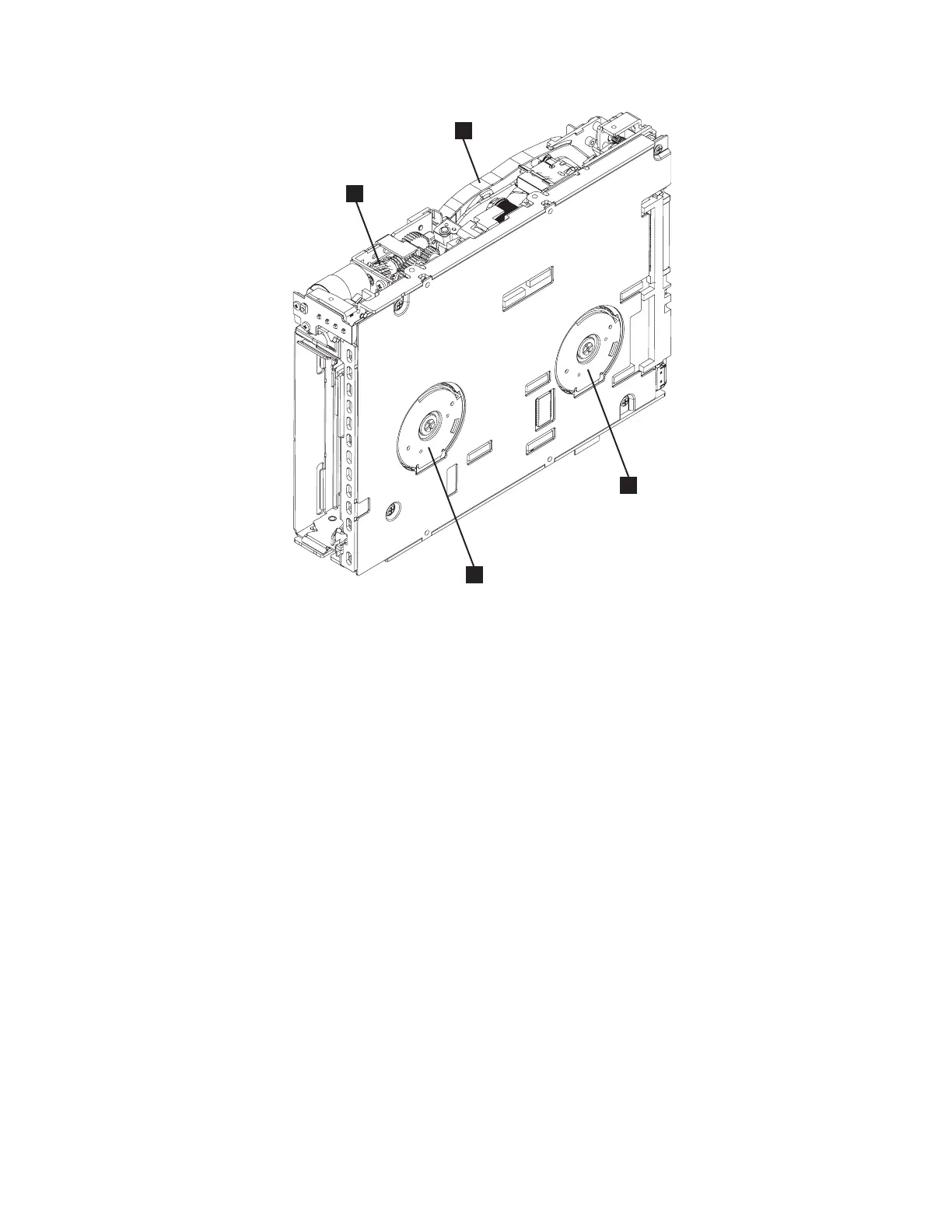

▌1▐ Loader motor worm gear ▌3▐ Takeup reel motor

▌2▐ Outer guide rail ▌4▐ Supply reel motor

6. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape

guiding rollers. Turn the supply reel (▌4▐ in Figure 173) 10 more turns. Ensure that you do not stretch

the tape.

7. Reassemble the drive, reversing the steps in “Beginning procedure” on page 177.

8. Reassemble the library chassis. See “Ending procedure” on page 186.

a82hd002

Figure 173. Rewinding tape into cartridge

Appendix A. Information for trained IBM service personnel 179
