Configuring library settings

Physical library settings

To configure the library cartridge assignment settings, complete the following procedure:

1. In the Configure Library menu in the left navigation pane of the Web User Interface, click

Physical/Logical

2. In the Physical Settings, enter the Library settings:

v Library name - Enter a name for your library.

v Auto Cleaning - Automatically cleans the drive when the drive requests that cleaning and a

cleaning cartridge is present in the library. Auto cleaning can be enabled only when there is at least

one inactive position in the magazine in the library.

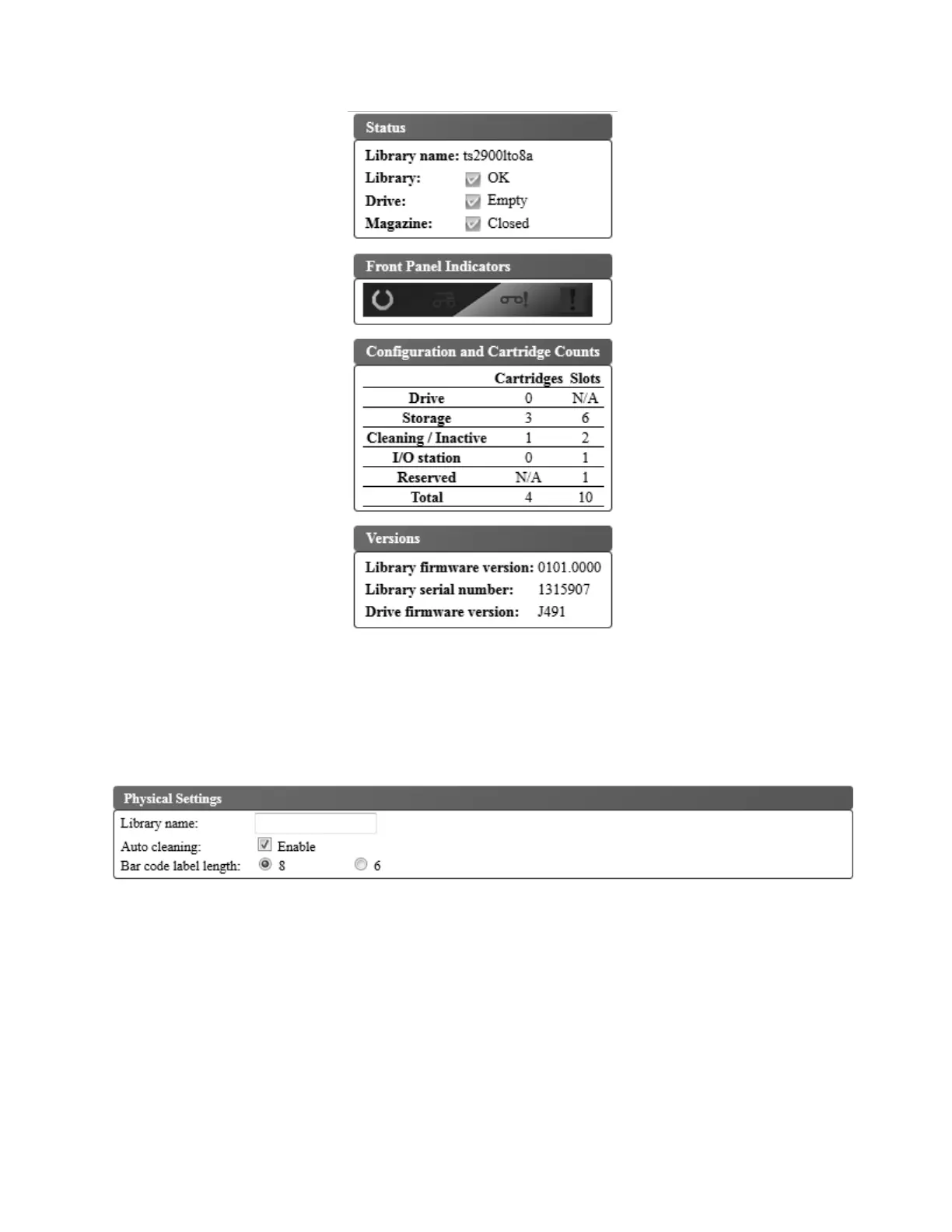

Figure 33. System summary

Figure 34. Cartridge assignment settings

Installation and configuration 39
