IDEC SmartRelay Manual
241
Web server
5.4 Operating the virtual module on the Web server
You can then proceed as follows:
• To enablepulse inputs, click or tap the cursor key or function key concerned.
• To enable continuous high-level signal inputs, double-click or double-tap the cursor key or
function key concerned.
• To disable the programmed cursor key or function key, click or tap the ESC key again.
• To disable the display of an active message as long as this message has been previously
configured in WindLGC as acknowledgable, click or tap the OK key.
Viewing message text
If you have configured your message text on WindLGC according to the instructions in the
Online Help for WindLGC, you are then able to see them on the virtual screen of the module.

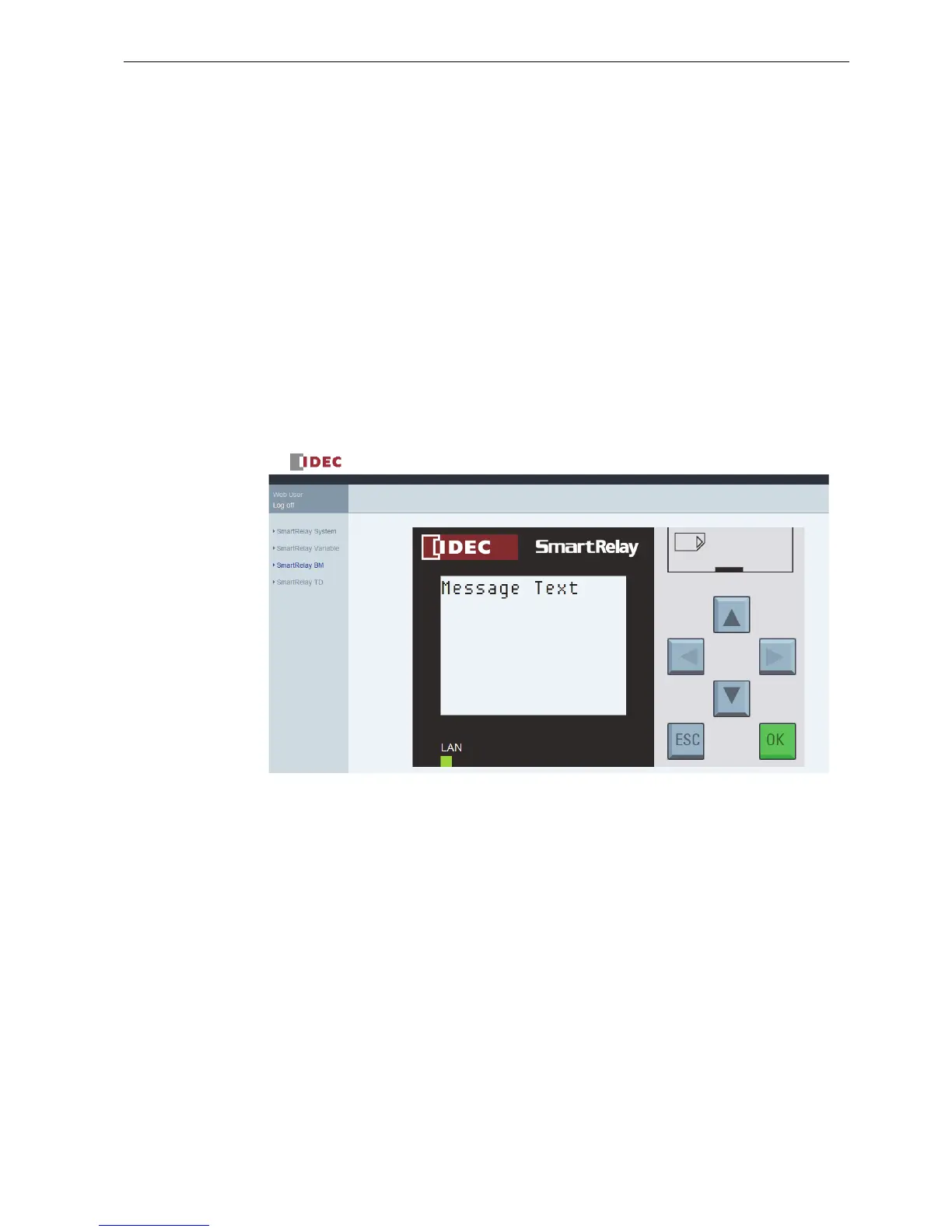

Click or tap SmartRelay BM or SmartRelay TD on the left navigation bar and you can view
active messages on the virtual device.
• On the Base Module:
