iTero Element 2 and iTero Element Flex User Manual

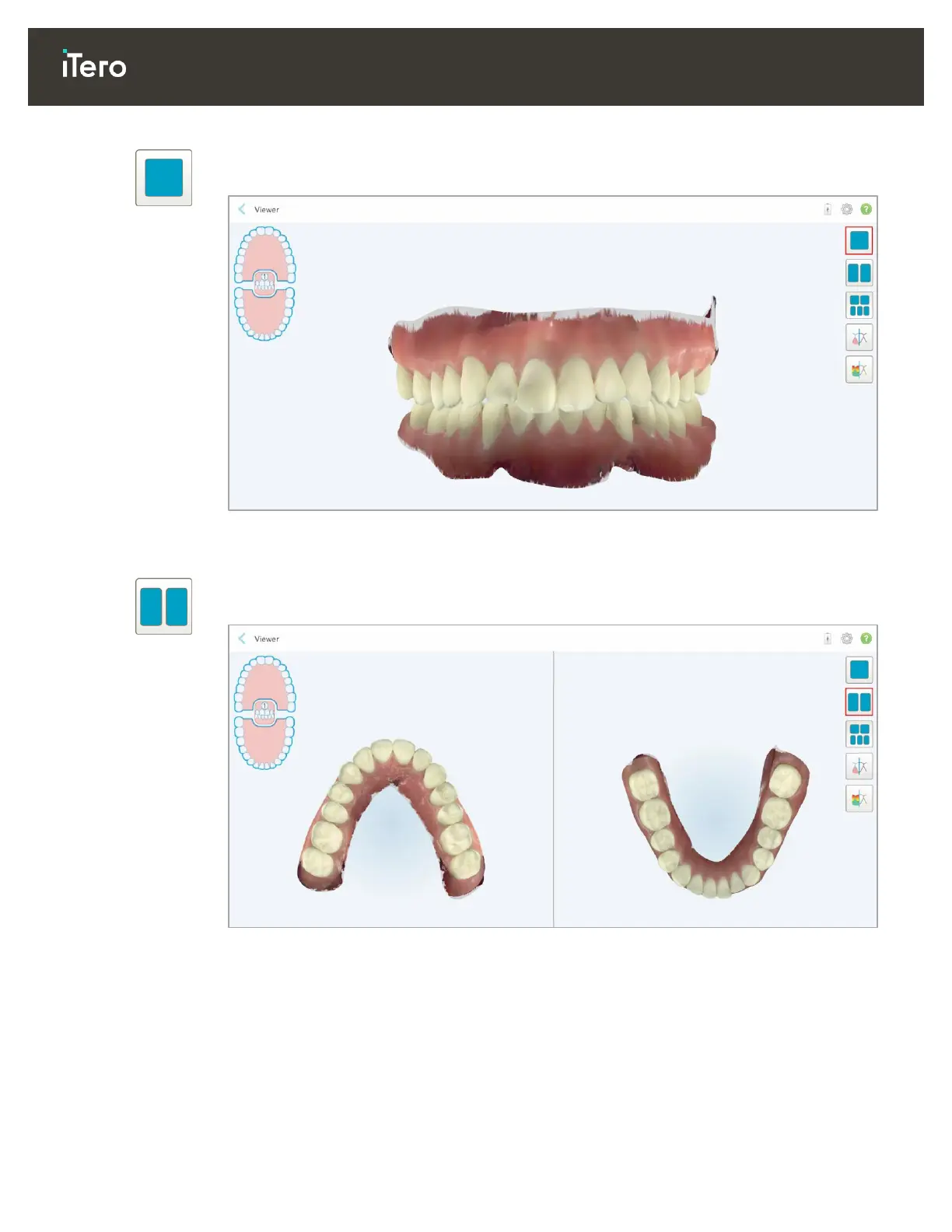

Display the model in a 1-window view, with the upper and lower jaws in the same window

(Frontal view).

Figure 98: Model in a 1-window view

Relevant for Orthodontic case types only.

Display the model in a 2-window view, with the upper and lower jaws in separate windows

(Occlusal view). Each model can be controlled separately, for better evaluation.

Figure 99: Model in a 2-window view

Relevant for Orthodontic case types only.
