iTero Element 2 - Figure 116: Itero Timelapse Scale Options

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

You can zoom in to the image in the animation window or tap the pause button to pause the

animation.

If required, you can change the scale of the changes displayed.

a. On the legend, click Scale.

The legend is expanded to display a list of ranges, in millimeters:

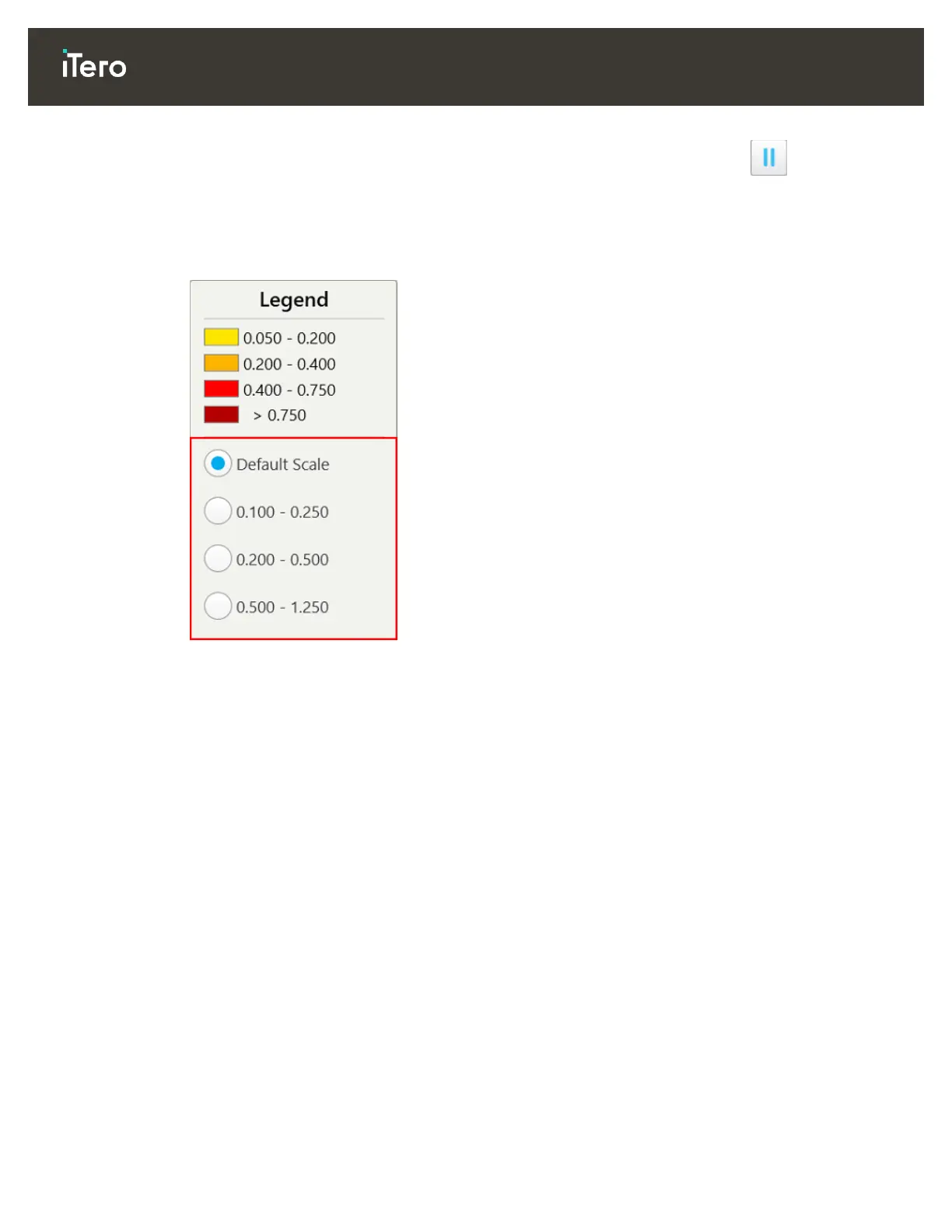

Figure 116: iTero TimeLapse scale options

b. Select the required scale.

The changes are displayed according to the new scale.
