iTero Element 2 and iTero Element Flex User Manual

To enter Demo Mode after logging in:

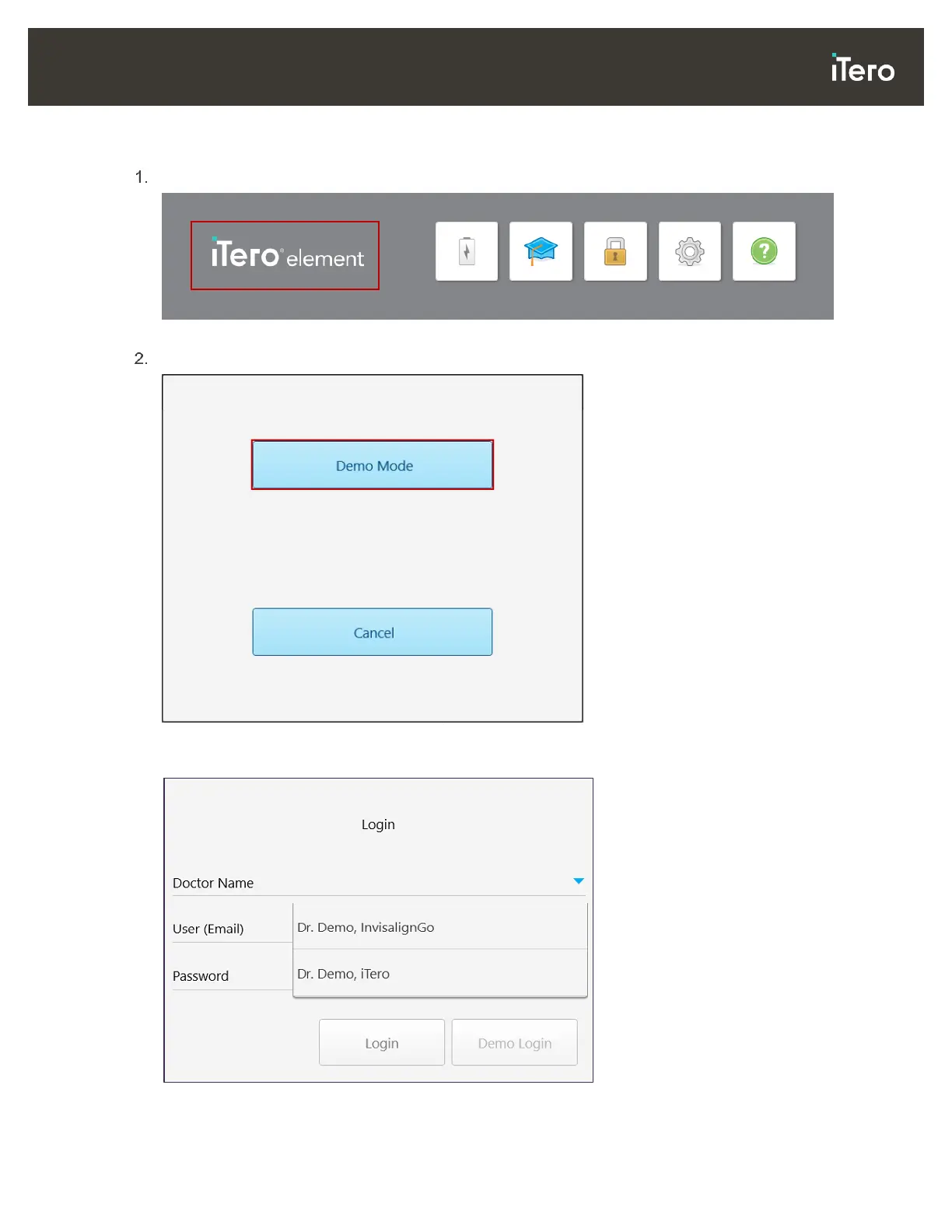

Tap the iTero Element logo at the top of the scanner screen.

Figure 12: iTero Element logo

Tap Demo Mode.

Figure 13: Demo Mode option

The Login window is displayed, enabling you to select the demo user.

Figure 14: Login window with a list of demo users
