iTero Element 2 - Figure 70: Delete Selection Tool; Figure 71: Expanded Delete Selection Tool

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

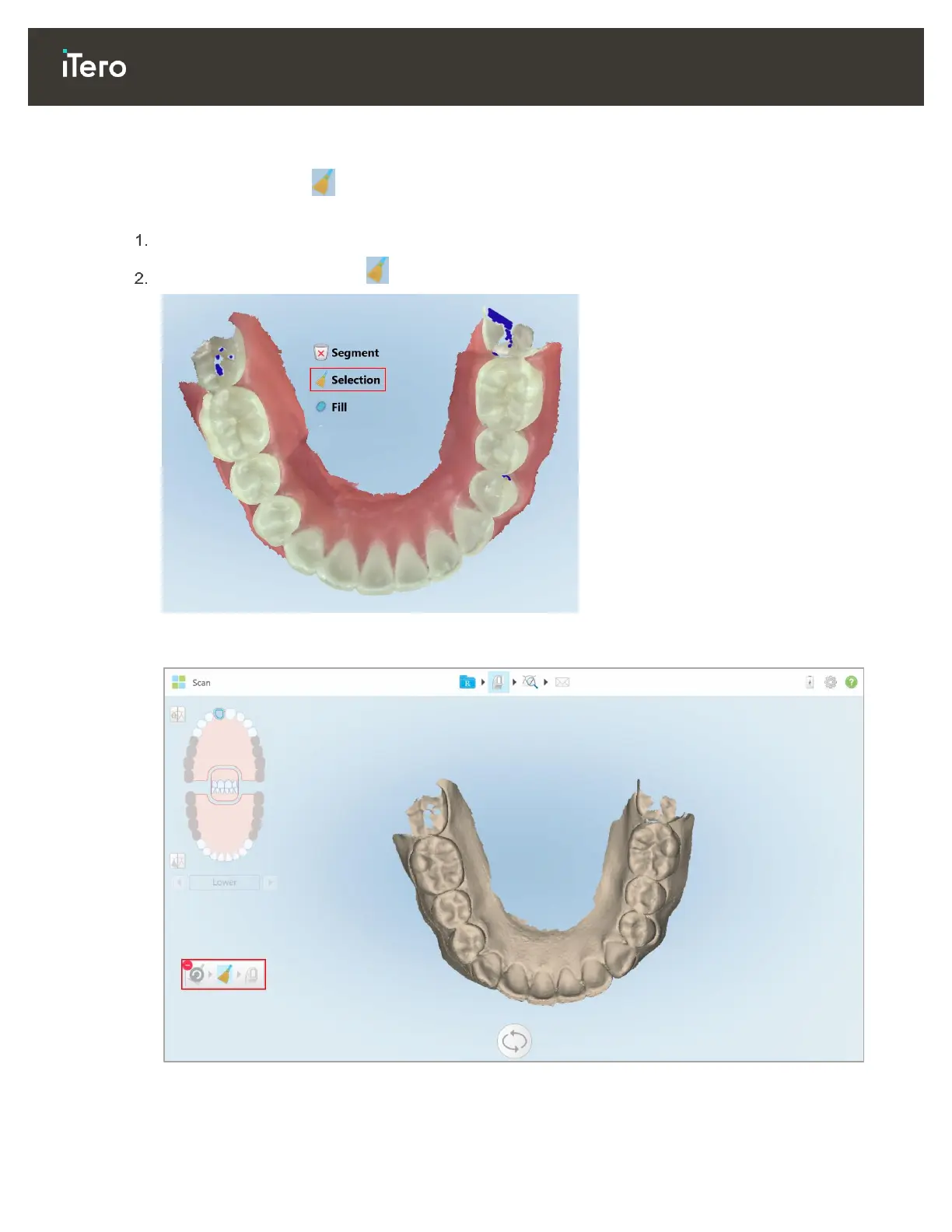

4.2.4.2 Deleting a selection

The Delete Selection tool enables you to delete a section of the scan so that it can be rescanned.

To delete a selection:

Press the screen to display the editing tools.

Tap the Delete Selection tool .

Figure 70: Delete Selection tool

The Delete Selection tool expands and the model is displayed in monochrome:

Figure 71: Expanded Delete Selection tool
