iTero Element 2 and iTero Element Flex User Manual

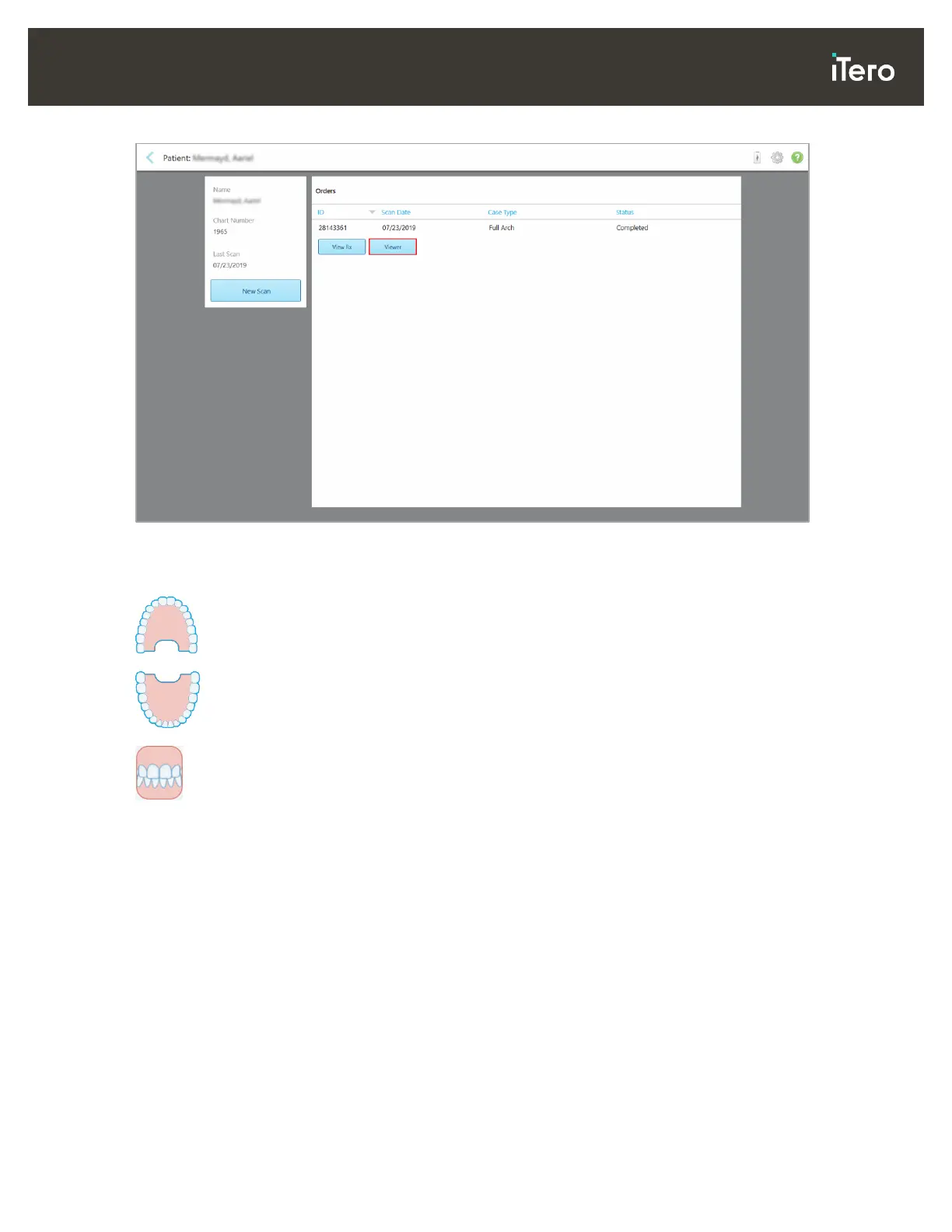

Figure 97: Viewer option in patient’s profile page

In the Viewer, you can click the following to:

Show/hide the upper jaw

Show/hide the lower jaw

Show both jaws
