iTero Element 2 - Figure 73: Fill Tool; Figure 74: Areas that Require Scanning Are Highlighted in Red

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

Tap the Fill tool .

Figure 73: Fill tool

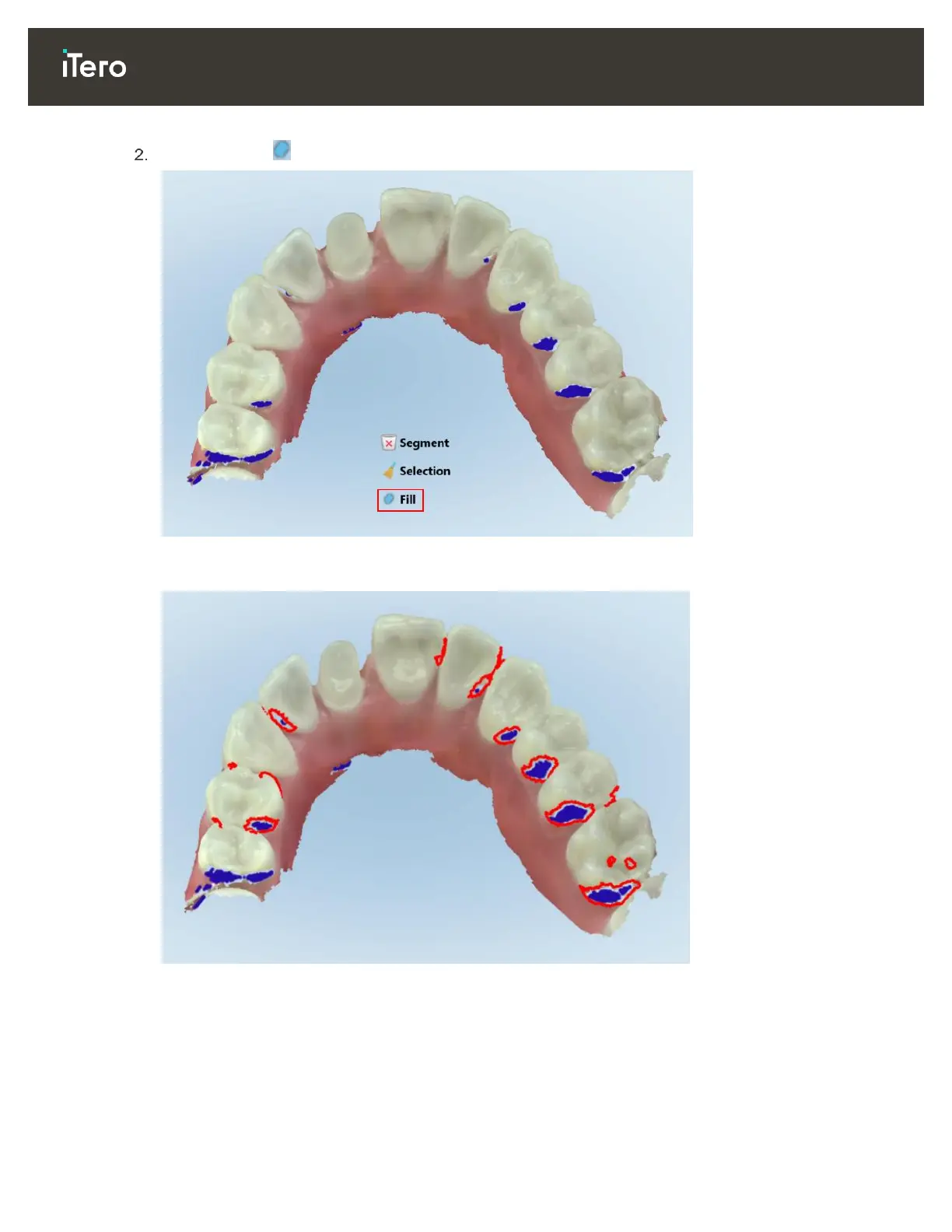

Areas that require scanning are highlighted in red.

Figure 74: Areas that require scanning are highlighted in red – Fill tool
