iTero Element 2 and iTero Element Flex User Manual

3.6.3.2 Running diagnostics

Tap the Diagnostics button to check the network connection and speed.

To run system diagnostics:

Tap the Diagnostics button.

The network connection and speed are checked.

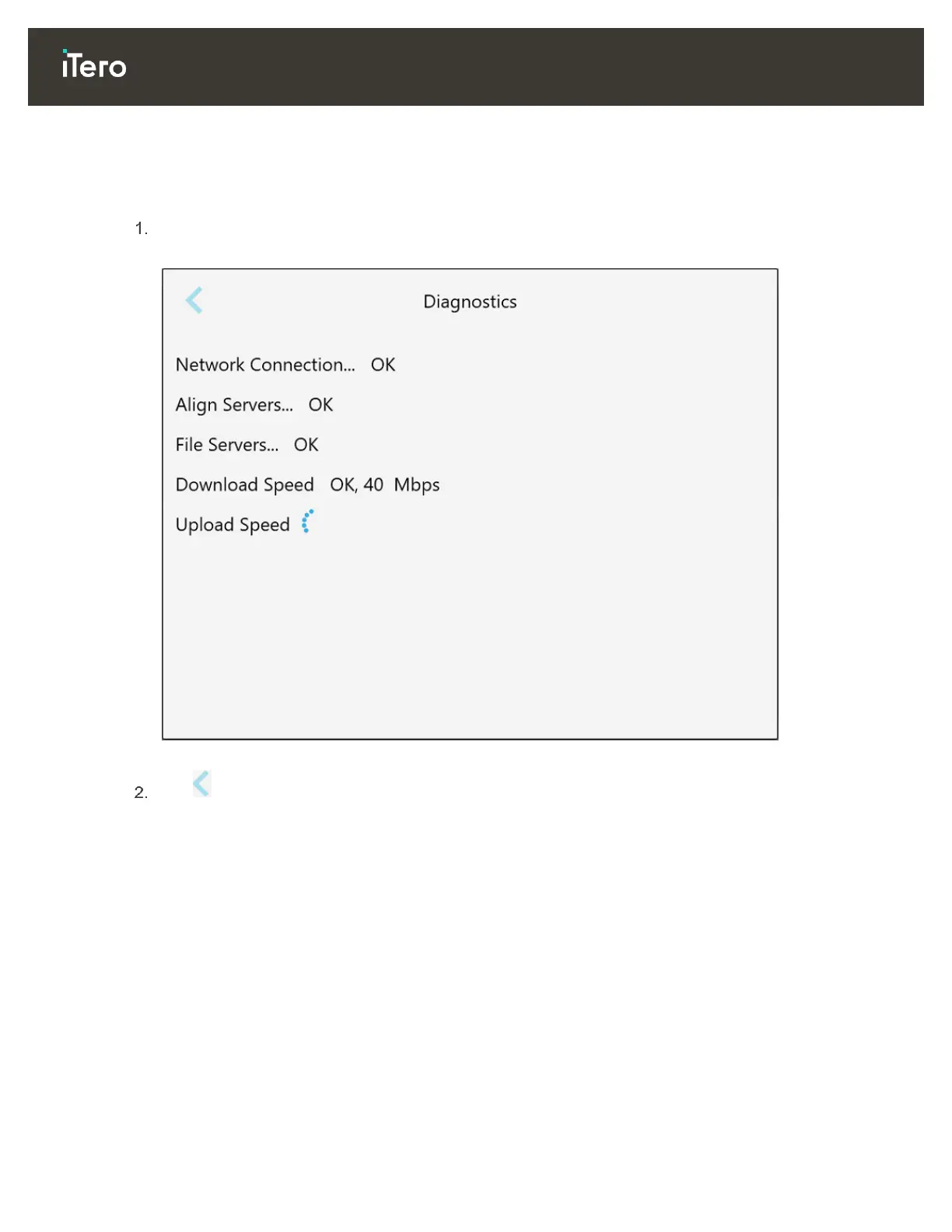

Figure 51: Diagnostics window

Tap to return to the Settings window.
