iTero Element 2 - Figure 26: Checking for Updates; Figure 27: System Is Registered and Ready

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

After reviewing the license agreement, select the check box to accept the terms of the agreement and then

tap Next.

The system checks for an upgrade and will be upgraded to the latest version, if relevant.

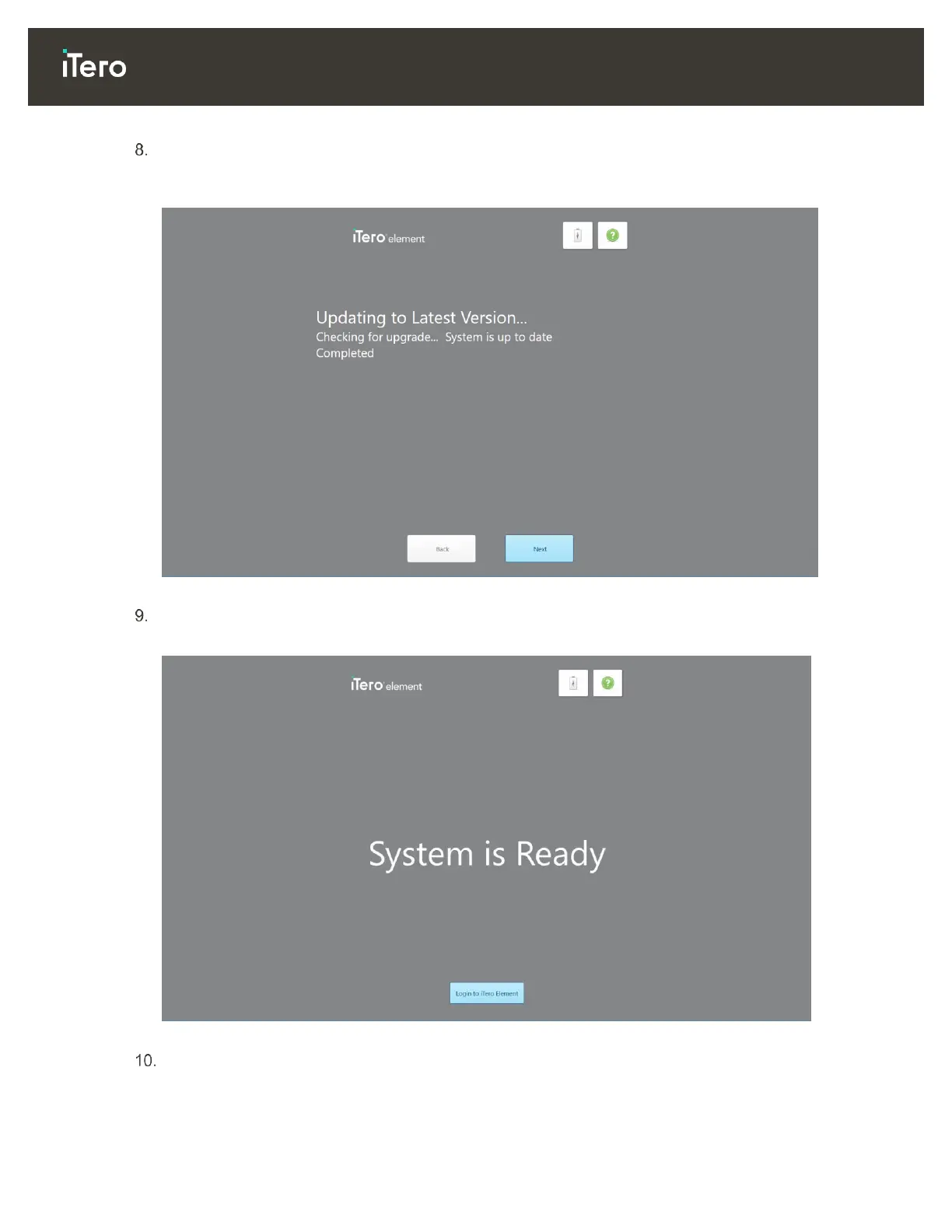

Figure 26: Checking for updates

Tap Next.

The system has been registered and is ready.

Figure 27: System is registered and ready

Tap Login to iTero Element to log in to the system, as described in the following section.
