iTero Element 2 and iTero Element Flex User Manual

To erase part of the scan:

In the View window, ensure you are in Buccal view and on the relevant section to be erased, and then tap

the Eraser tool .

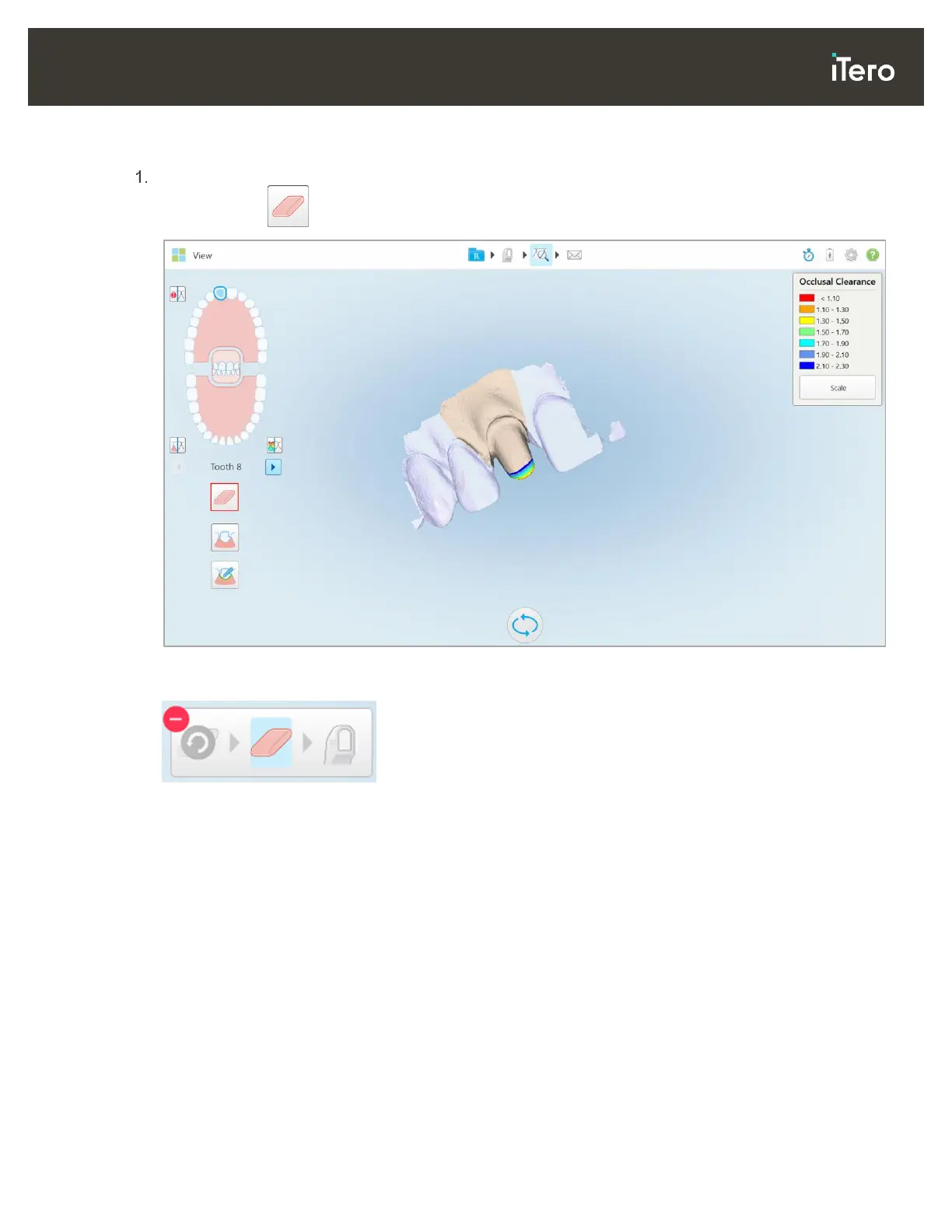

Figure 76: Eraser tool

The Eraser tool expands to show the following options:

Figure 77: Eraser tool options
