iTero Element 2 - Working with the Die Separation Tool

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

Tap to confirm the trimming.

The selected area is removed.

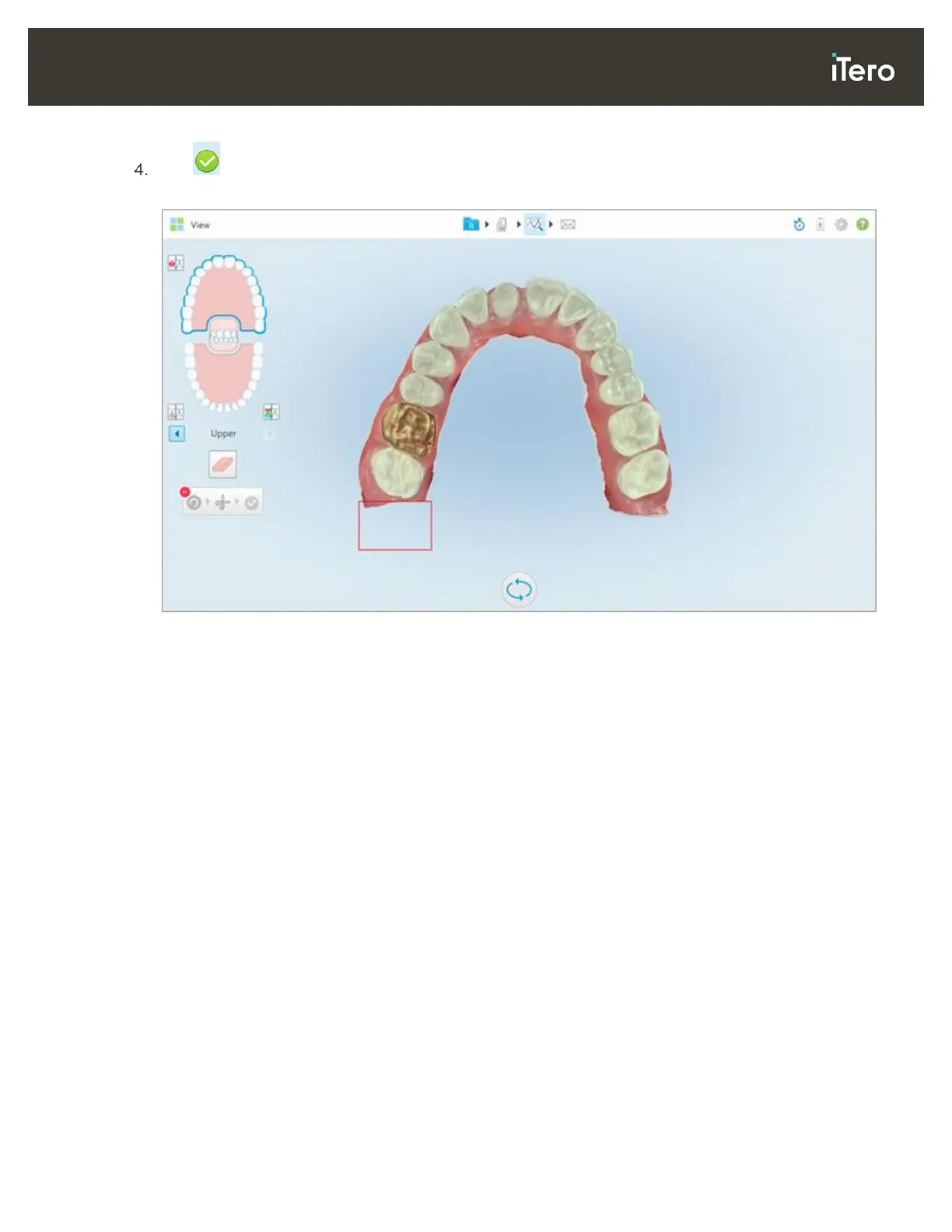

Figure 87: Selected area has been removed

4.3.5 Working with the Die Separation tool

The die separation is created automatically, according to the position of the green hint point, which must be

located on the center of the prepped tooth after scanning.

If required, the die separation area can be edited or created manually.
