iTero Element 2 and iTero Element Flex User Manual

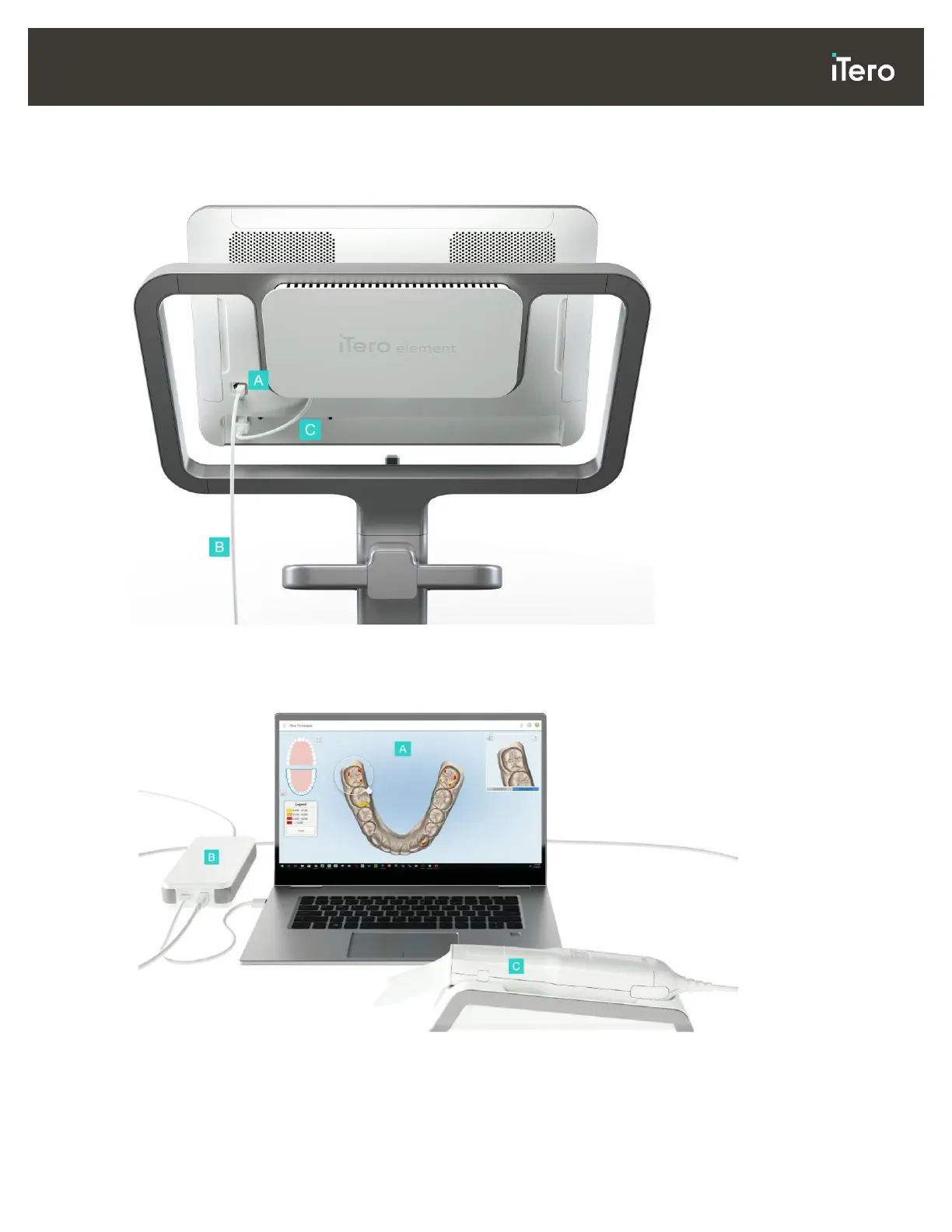

Rear view

A Wand connector

B Wand cable

C Screen power cable

Figure 2: Rear view of the iTero Element 2

1.4.2 iTero Element Flex

A Laptop touch

screen

B iTero Element

Flex hub

C Wand and

cradle

Figure 3: iTero Element Flex
