iTero Element 2 - Figure 52: Licensing Information Window

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

3.6.3.3 Licenses

Tap the Licenses button to view a list of third-party software components installed on the scanner and then

tap to return to the Settings window.

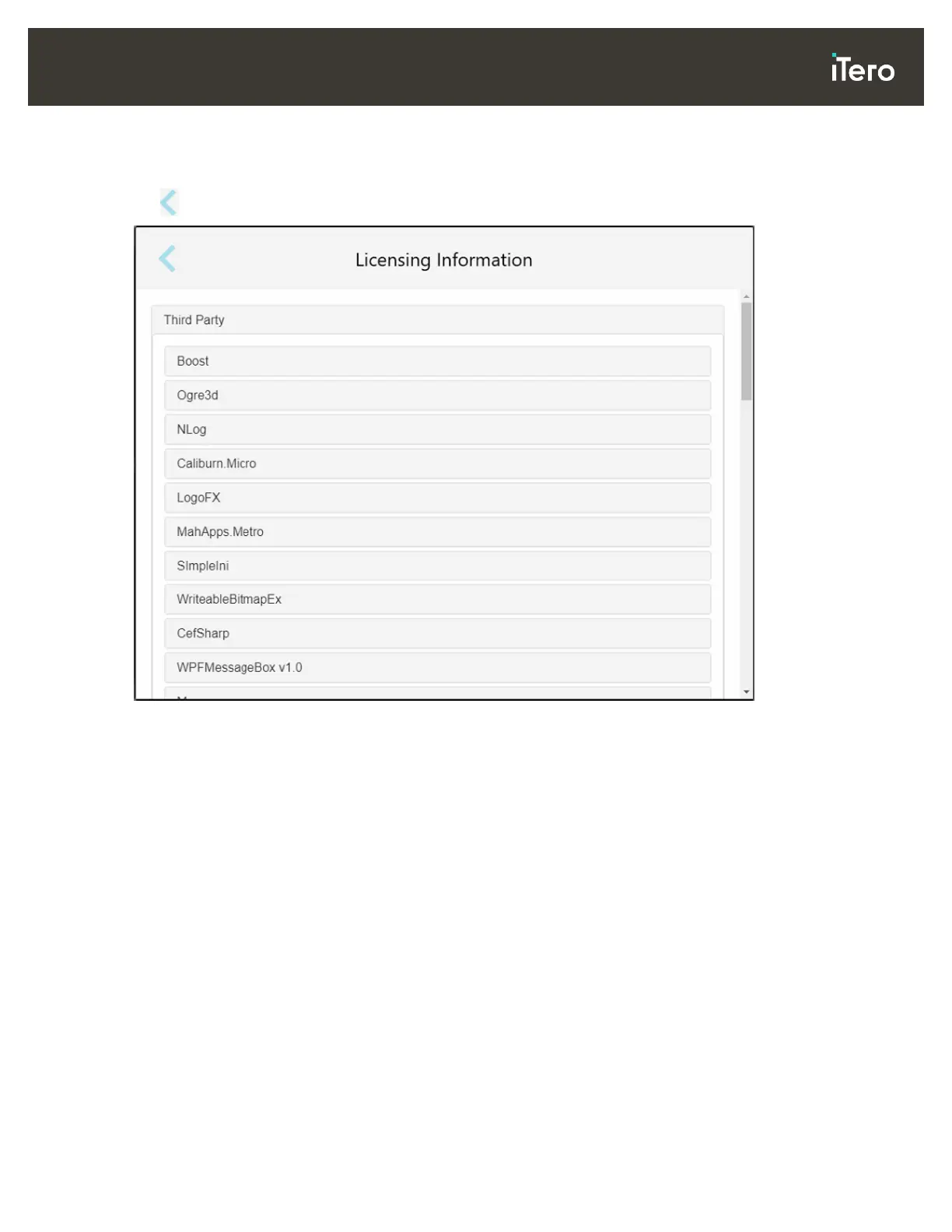

Figure 52: Licensing Information window
