iTero Element 2 and iTero Element Flex User Manual

2 Getting started

2.1 Assembly instructions

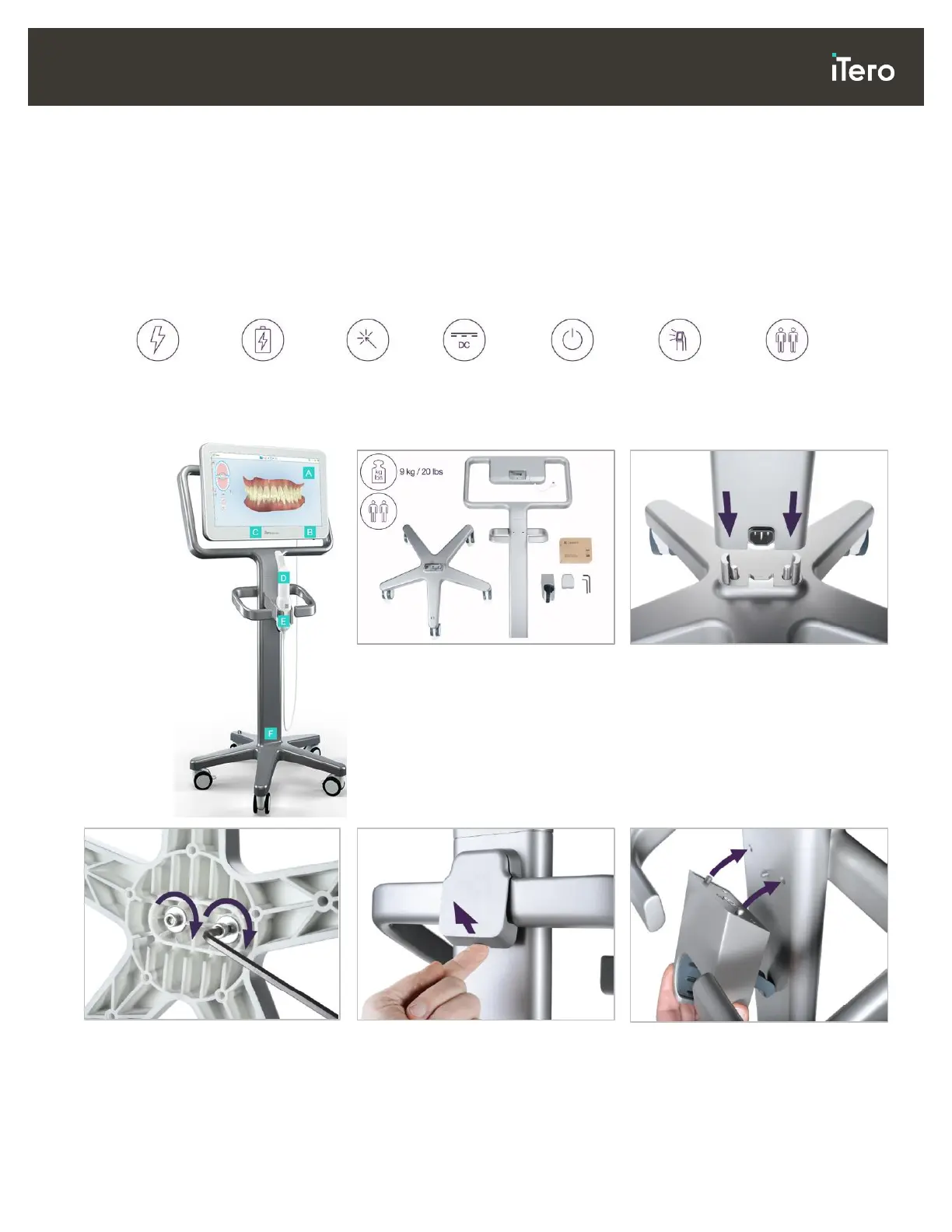

2.1.1 Assembling the iTero Element 2 scanner – wheel-stand configuration

Follow the instructions below to assemble the iTero Element 2 scanner.

AC power

Battery

Click

DC power

Power

button

Wand

2 people are

required for

installation

A Touch

screen

B Power

switch

C Power

LED

D Wand

E Cradle

F Wheel

base

1. Check the contents of the boxes.

2. Connect the post to the wheel

base.

3. Tighten the two Allen screws

using the larger Allen key.

4. Remove the cover from the back

of the handle.

5. Attach the wand cradle to the

front of the wheel stand.
