iTero Element 2 and iTero Element Flex User Manual

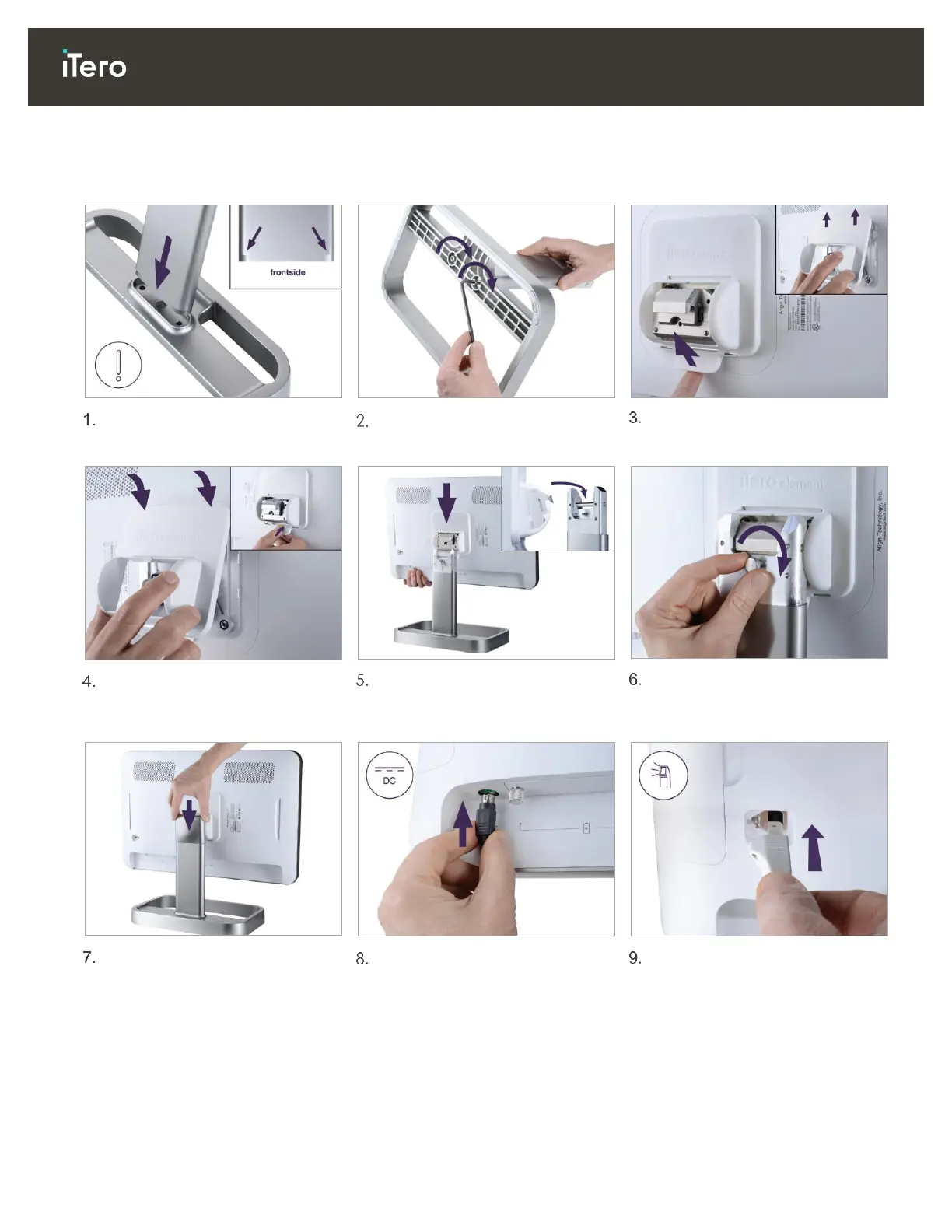

2.1.2 Assembling the iTero Element 2 scanner – counter-stand configuration

Follow the instructions below to assemble the iTero Element 2 scanner.

Insert the post into the frame.

Tighten the post using the Allen

key.

Remove the cover.

Attach the new cover.

Lift the touch screen to mount it.

Turn the scanner around and

tighten the thumbscrew to secure

the screen.

Attach the cover.

Connect the power cable to the

port labeled DC.

Connect the wand cable to the

back of the touch screen.
