iTero Element 2 and iTero Element Flex User Manual

In the tooth chart, tap on the tooth to be restored.

A list of available treatment options for the selected tooth is displayed.

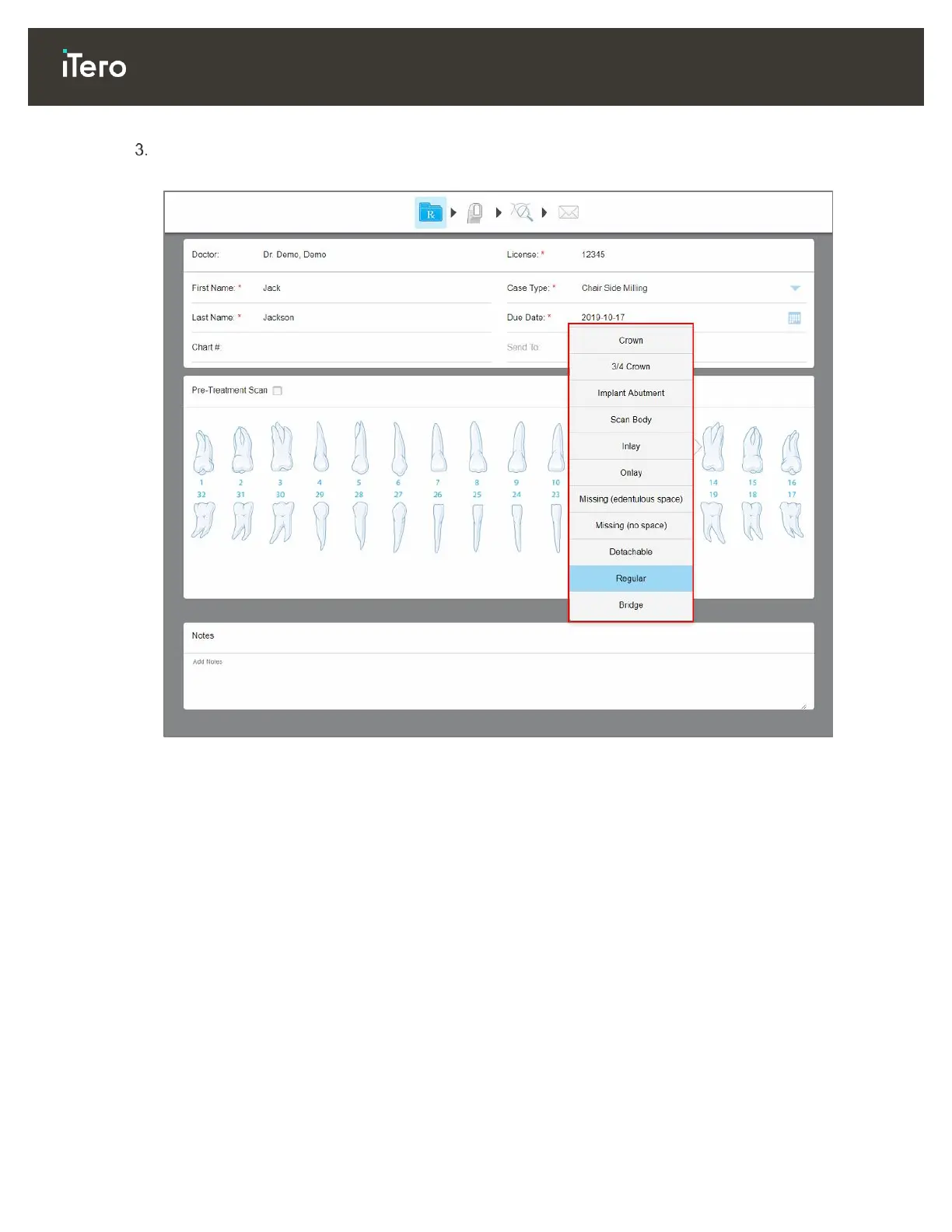

Figure 59: List of restorative treatment options

The list of treatment options is the same for all teeth, except for the following:

o Inlay and Onlay: Relevant only for the molars and premolars

o Veneer: Relevant only for the incisors and the premolars
