iTero Element 2 - Figure 24: Itero Subscription Package; Figure 25: License Agreement

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

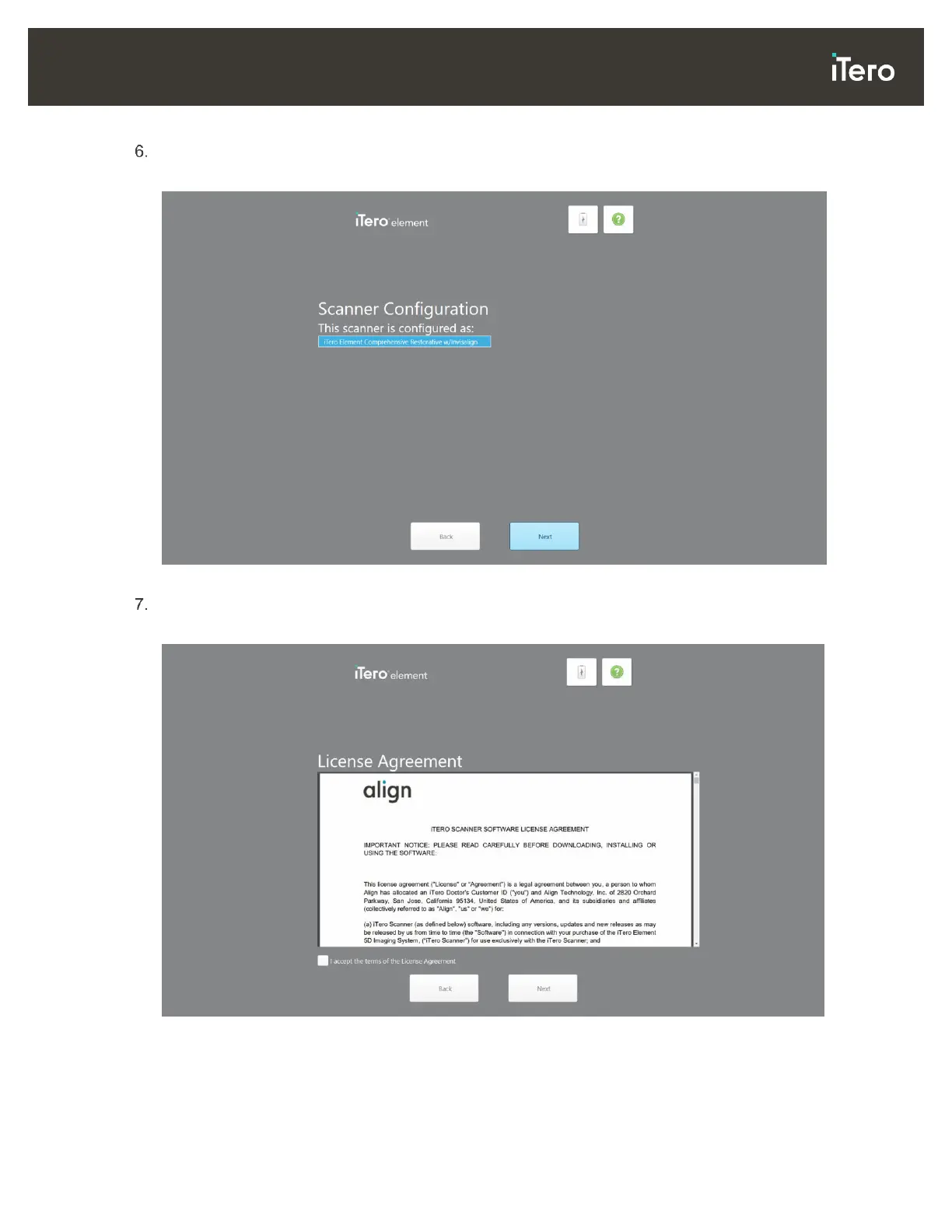

Enter your email, password, and company ID in the fields provided, and then tap Register.

The Scanner Configuration page is displayed, showing your iTero subscription package.

Figure 24: iTero subscription package

Tap Next.

The License Agreement page is displayed.

Figure 25: License agreement
