iTero Element 2 - Figure 15: Demo Login Button; Figure 16: Demo Mode Home Screen

To Next Page

To Previous Page

iTero Element 2 and iTero Element Flex User Manual

To view restorative cases, select the Dr. Demo, iTero user from the Doctor Name drop-down list.

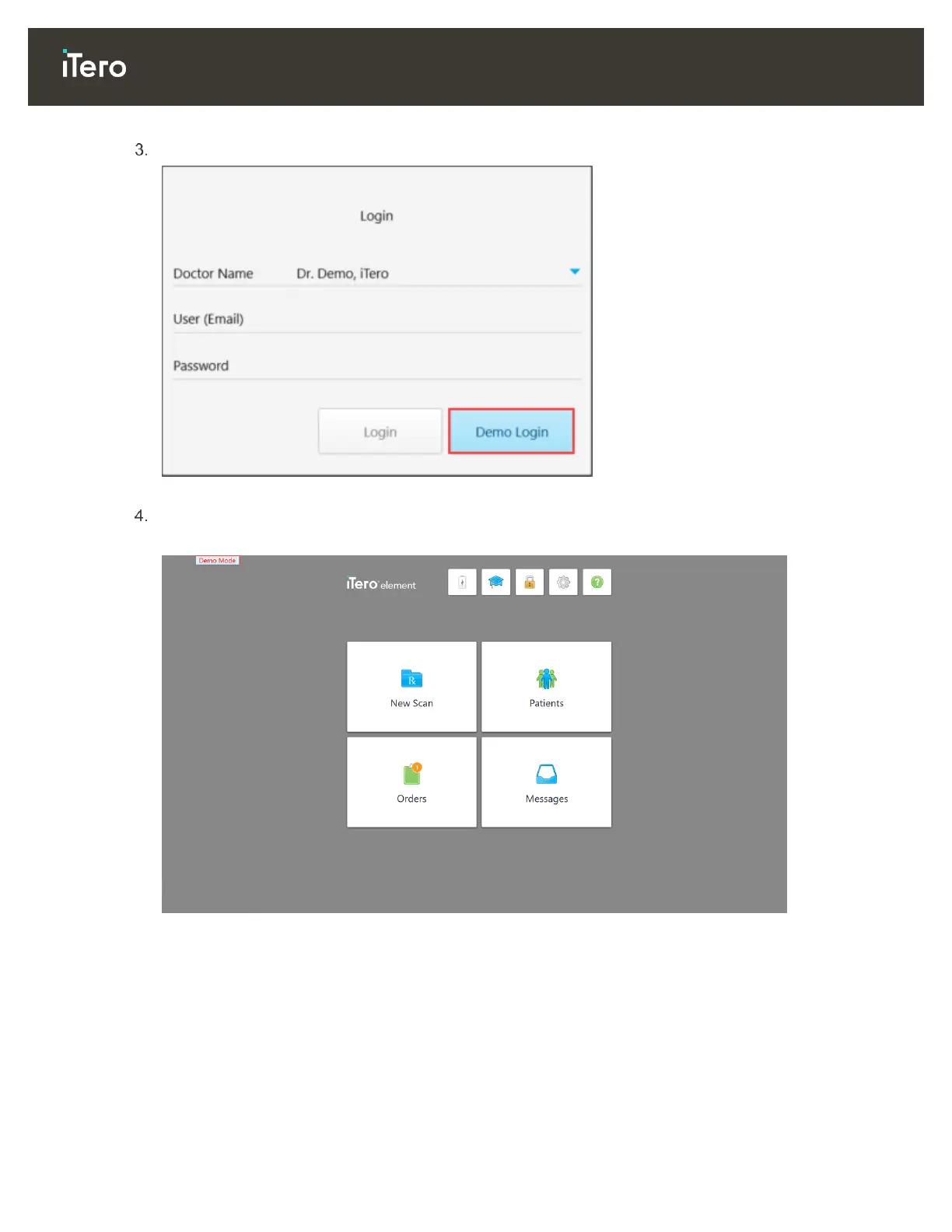

Figure 15: Demo Login button

Tap Demo Login.

The Demo Mode home screen is displayed, with Demo Mode shown on the top left of the window.

Figure 16: Demo Mode home screen
