Model 2700 Multimeter/Switch System User’s Manual Triggering 8-11
For this example, the Models 2700 and 7002 are configured as follows:
Model 2700
Factory defaults restored (accessed from SHIFT-SETUP)
External triggers (accessed from EX TRIG)
Buffer enabled and set to store 400 readings
Model 7002
Factory defaults restored
Scan list = 1!1-1!400
Number of scans = 1
Channel spacing = TrigLink

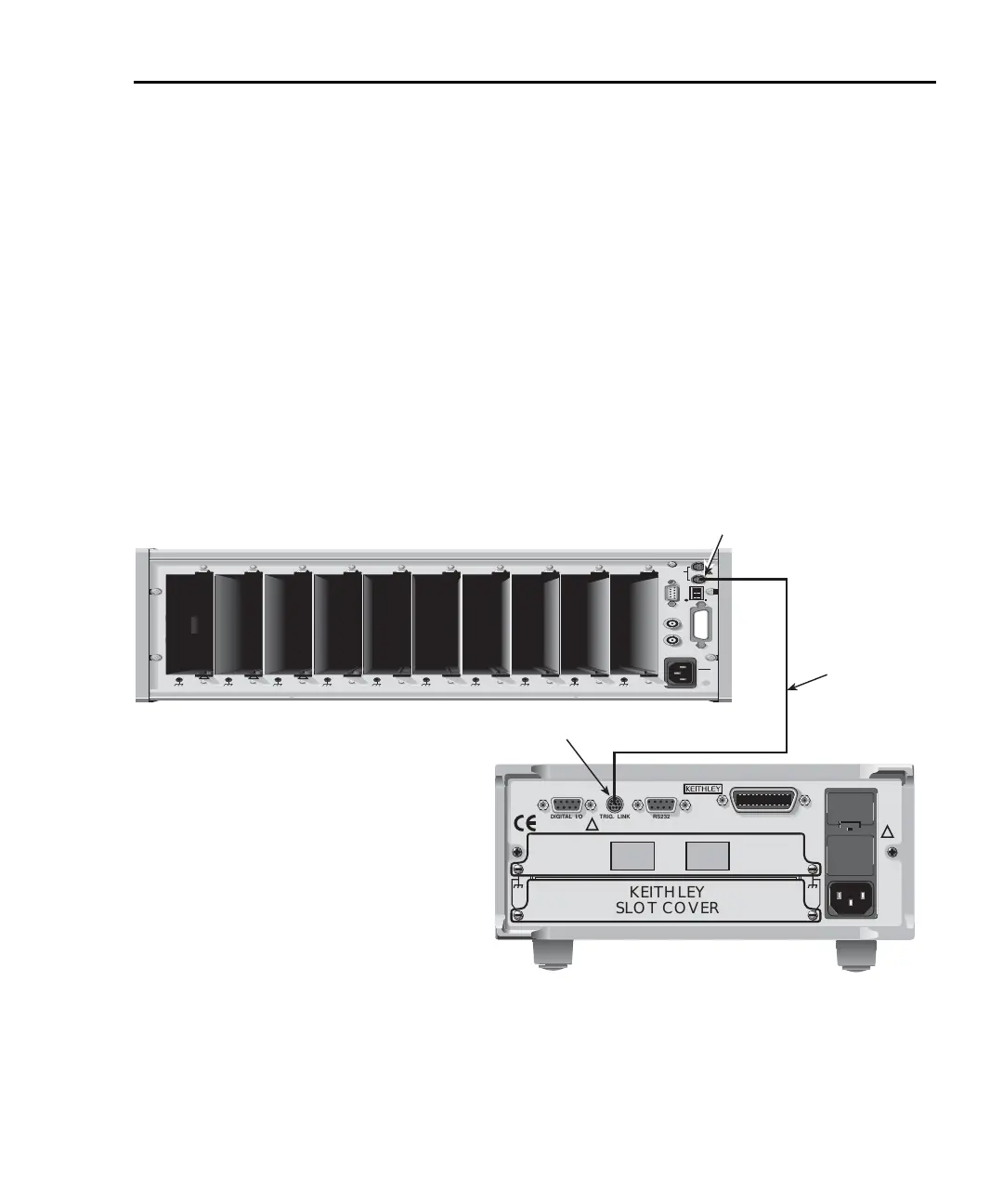

Figure 8-7
Trigger link connections
Model 2700
KEITHLEY
SLOT COVER
DIGITAL I/O TRIG. LINK
RS232
CARD
1
CARD
2
CARD
3
CARD
4
CARD
5
CARD
6
CARD
7
CARD
8
CARD
9
CARD
10
INTERCONNECTION, INSTALLATION AND REMOVAL OF CARDS BY QUALIFIED SERVICE PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICEABLE PARTS, SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
CHANNEL
READY
O
U
T
I
N
DIGITAL
I/O
A1
A2
A3
A4
A5
TRIGGER
LINK
IEEE
-
488
LINE
RATING
EXTERNAL
TRIGGER
90
-
260
V
47
-
440
Hz
85
VA
MAX
MADE IN USA
Model 7002
Trigger Link
Cable (8501)
Trigger Link
Trigger Link
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
!
!
IEEE-488
SLT
2
SLT
1
To Next Page
