Model 2700 Multimeter/Switch System User’s Manual Limits and Digital I/O 9-15
Application — sorting resistors
For this application, the idea is to sort a batch of 100Ω resistors into three bins. Bin 1 is for
resistors that are within 1% of the nominal value. Bin 2 is for resistors that exceed 1%
tolerance, but are within 5%. Bin 3 is for resistors that exceed 5% tolerance.
The digital outputs of the Model 2700 can be used to further automate the test system by
controlling a compatible component handler to perform the binning operations.
Limits
Limit testing is used to test resistor tolerances. Figure 9-6 shows a basic setup using 4-wire
offset-compensated ohms to test 100Ω resistors.

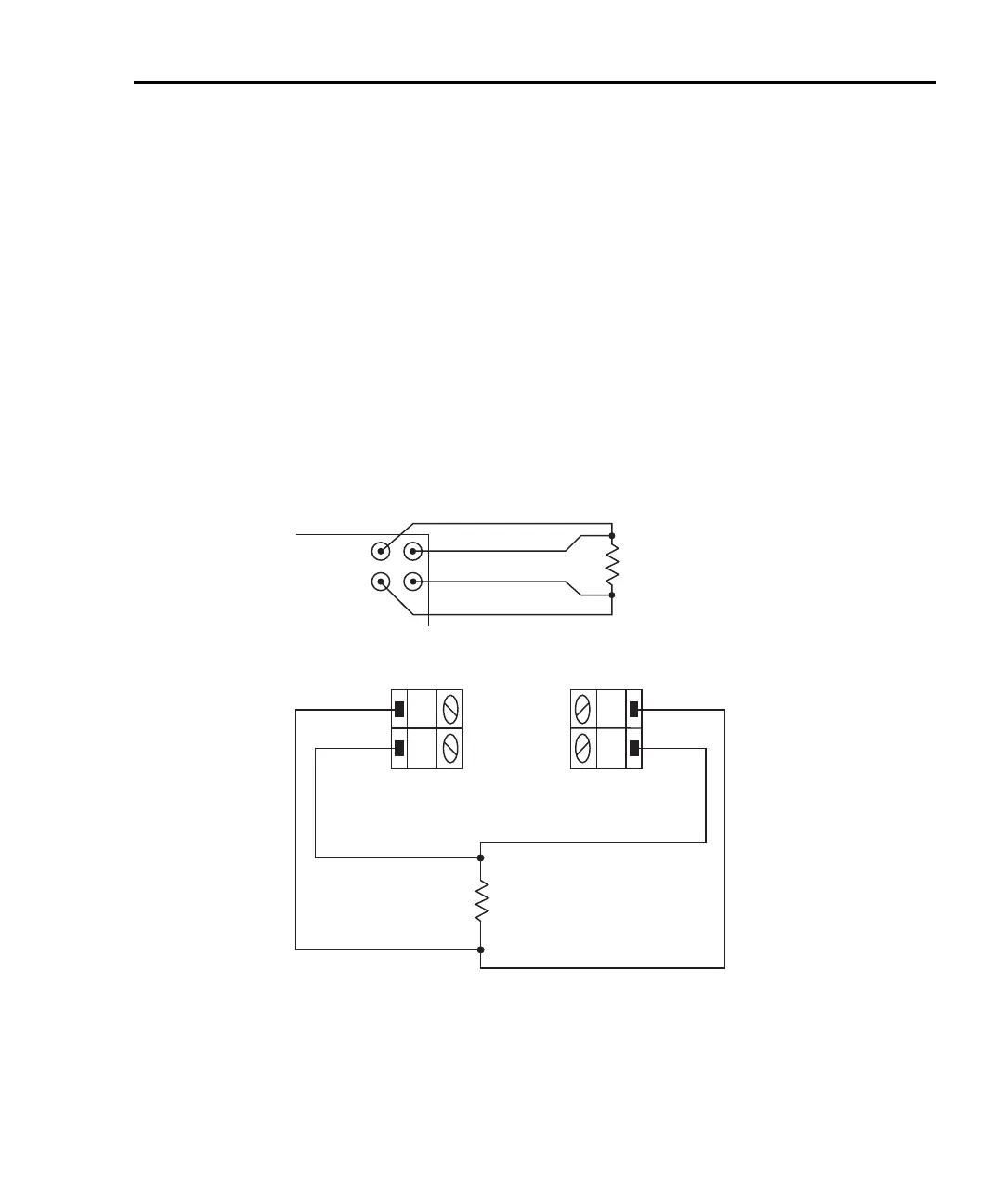

Figure 9-6
Setup to test 100Ω resistors
H
L
CH 1-10
Model 7700
Switching
Module
H
L
CH 11-20
B. Model 7700
INPUT
SENSE
Model 2700
Input HI
Input LO
Sense HI
Sense LO
A. Front Panel Inputs
100Ω
100Ω

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
