B-8 Model 7700 Connection Guide Model 2700 Multimeter/Switch System User’s Manual
Typical connections
The following examples show typical wiring connections for the following types of
measurements:
• Thermocouple connections, Figure B-5
• Ω2-Wire and thermistor connections, Figure B-6
• Ω4-Wire and RTD connections, Figure B-7
• Current connections (AC or DC), Figure B-8
• Voltage connections (AC or DC), Figure B-9

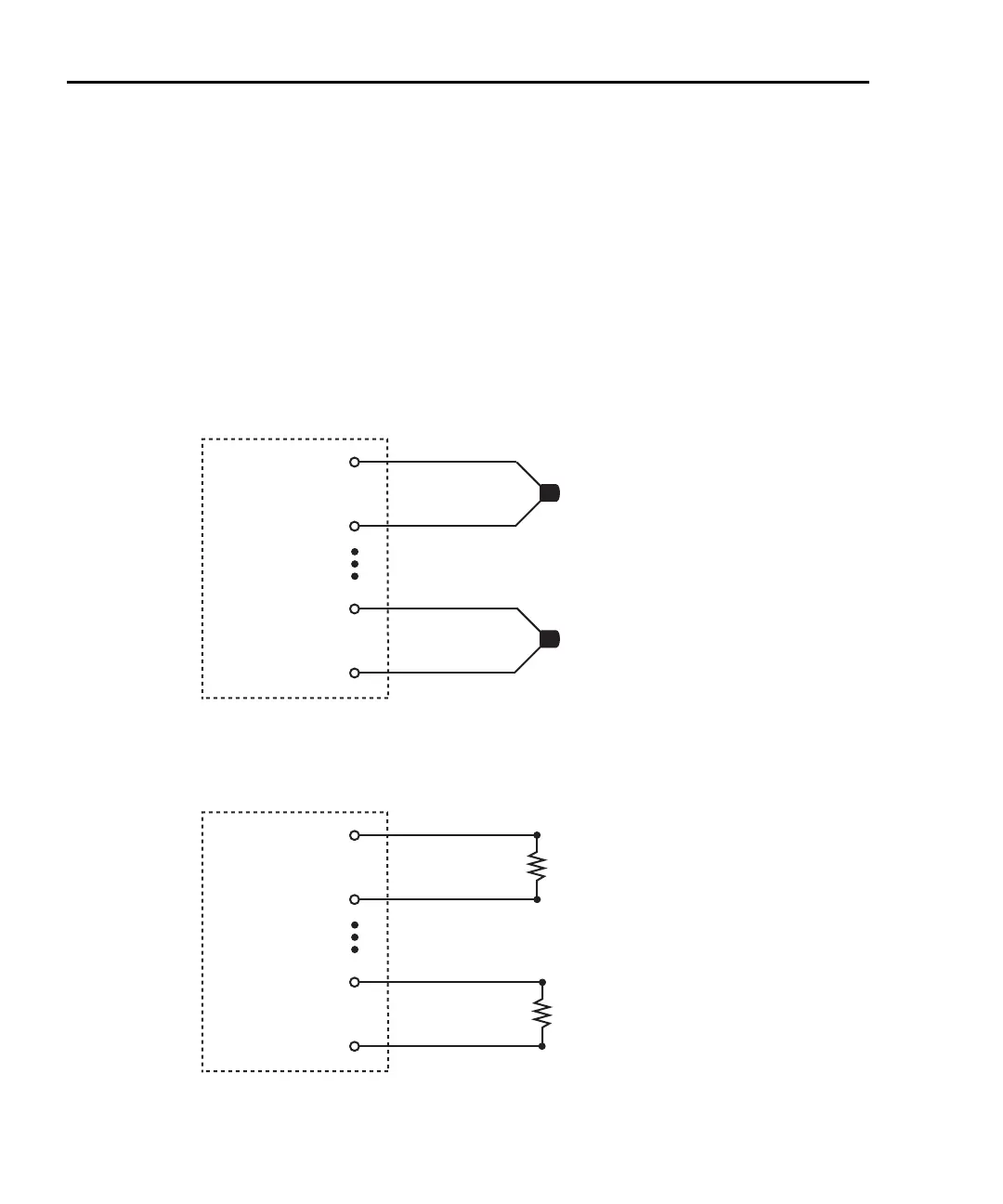

Figure B-5
Thermocouple connections
Figure B-6
Ω2-Wire and thermistor connections
Channel 1
HI
LO
Channel 20
HI
LO
(Channels 2-19)
Thermocouple
Channel 1
HI
LO
Channel 20
HI
LO
(Channels 2-19)
Resistor or
Thermistor

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
