Keithley 2700 User Manual

Model 2700 Multimeter/Switch System User’s Manual Getting Started 1-29
Closing and opening channels — system channel operation
NOTE See Section 2 for details on closing and opening switching module channels.
NOTE The following discussion assumes a multiplexing switching module
(i.e.,
Model 7700) is installed in slot 1 of the mainframe. Switching module
installation is covered in
Section 2 (see “Switching module installation and
connections,” page 2-3).
An alternative to installing a switching module is to assign slot 1 as a
pseudocard using remote programming. The instrument will operate as if a
switching module is installed in slot 1. To “install” a 7700 pseudocard in slot 1,
send the following command:
SYST:PCAR1 C7700
System channel operation is used to connect input channels to the DMM of the
Model
2700:
• For a 2-wire function (i.e., DCV), closing a system channel connects the input to
DMM Input of the Model 2700.
Figure 1-4 shows system channel 1 closed. For the Ω2 function, the resistance
(DUT) would be connected to DMM Input as shown Figure 1-4.

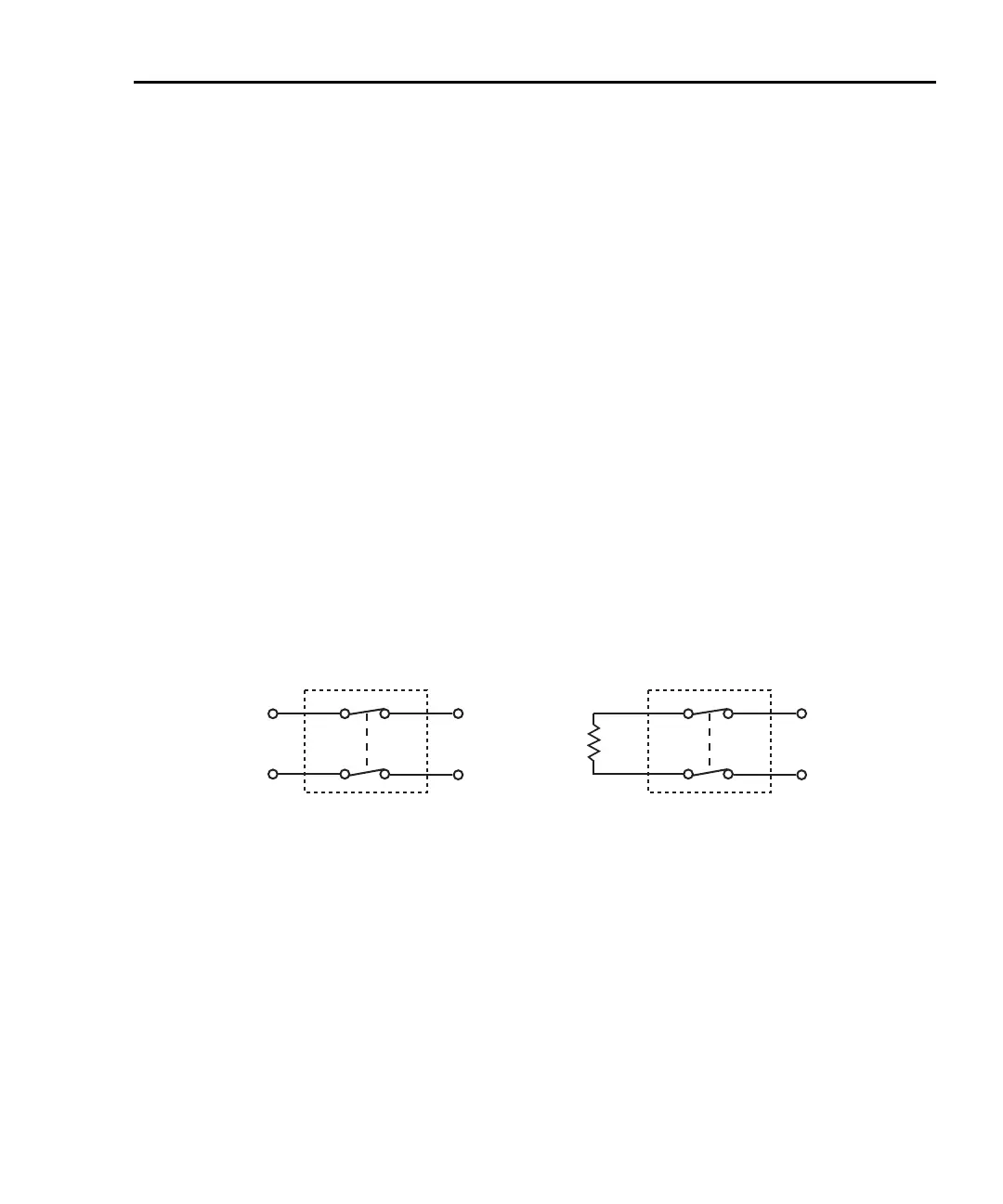

Figure 1-4
Connection to DMM for 2-wire function (system channel 101 closed)
DMM
DUT
DMM
Switching Module Switching Module
HI
LO
HI
LO
Input
Ch 1
HI
LO
HI
LO
Input
Ch 1

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
