Model 2700 Multimeter/Switch System User’s Manual Measurement Considerations E-9
Meter loading
Loading of the voltage source by the Model 2700 becomes a consideration for high source
resistance values. As the source resistance increases, the error caused by meter loading
increases.

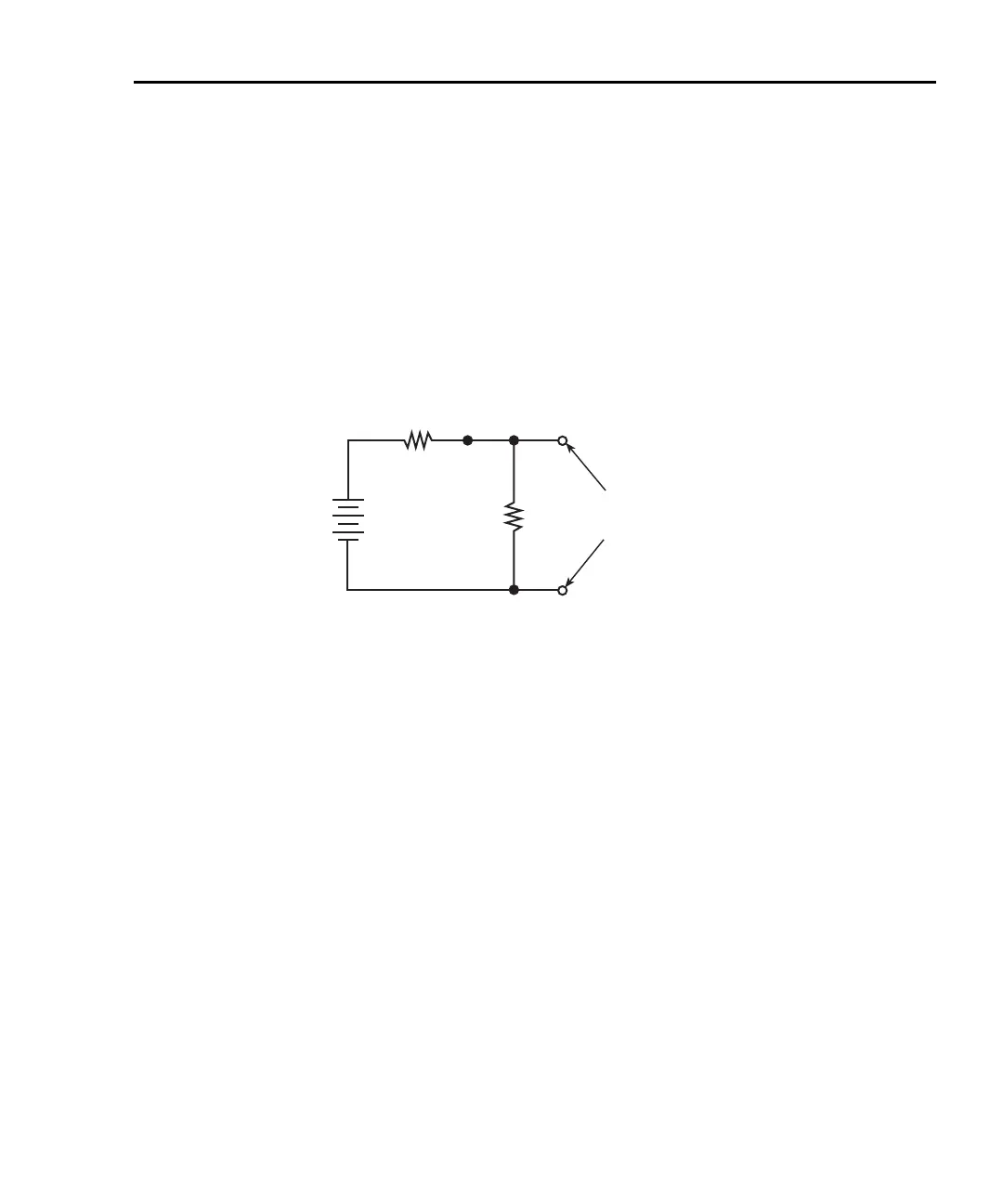

Figure E-5 shows the method used to determine the percent error due to meter loading.
The voltage source, V
S
, has a source resistance, R
S
, while the input resistance of the
Model 2700 is R
I
, and the voltage measured by the nanovoltmeter is V
M
.
Figure E-5
Meter loading
The voltage actually measured by the meter is attenuated by the voltage divider action of
R
S
and R
I
, and it can be calculated as follows:
This relationship can be modified to directly compute for percent error:
From the above equation, it is obvious that the input resistance of the Model 2700 must be
at least 999 times the value of source resistance if loading error is to be kept to within
0.1%.
V
M
Measured
Voltage
R
S
R
I
V
S
Source
Voltage
+
–
V
M
V
S
R
L
R
I
R
S
+
-------------------=
Percent error
100R
S
R
I
R
S
+
-------------------=

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
