Model 2700 Multimeter/Switch System User’s Manual Getting Started 1-33
For SCAN, the reading count also determines the number of scans to perform and is best
explained by an example. Assume there are 10 channels in the scan list (i.e., 101 through
110). If you set the reading count to 10 or less, one scan of the 10 channels will be
performed. If you set the reading count to any value from 11 to 20, two scans will be
performed. A reading count from 21 to 30 gives you three scans, and so on.
Timer interval (TIMER) — For the STEP function, the timer specifies the time delay
between scanned channels. For the SCAN function, the interval specifies the time delay
between scans. The timer starts when the scan is started. For SCAN, the next scan will not
start until the timer interval expires.
NOTE The Model 2700 can also be configured to run an advanced scan. For an
advanced scan, each channel can have its own unique setup (i.e., function,
range, etc.). Advanced scanning is covered in
Section 7.

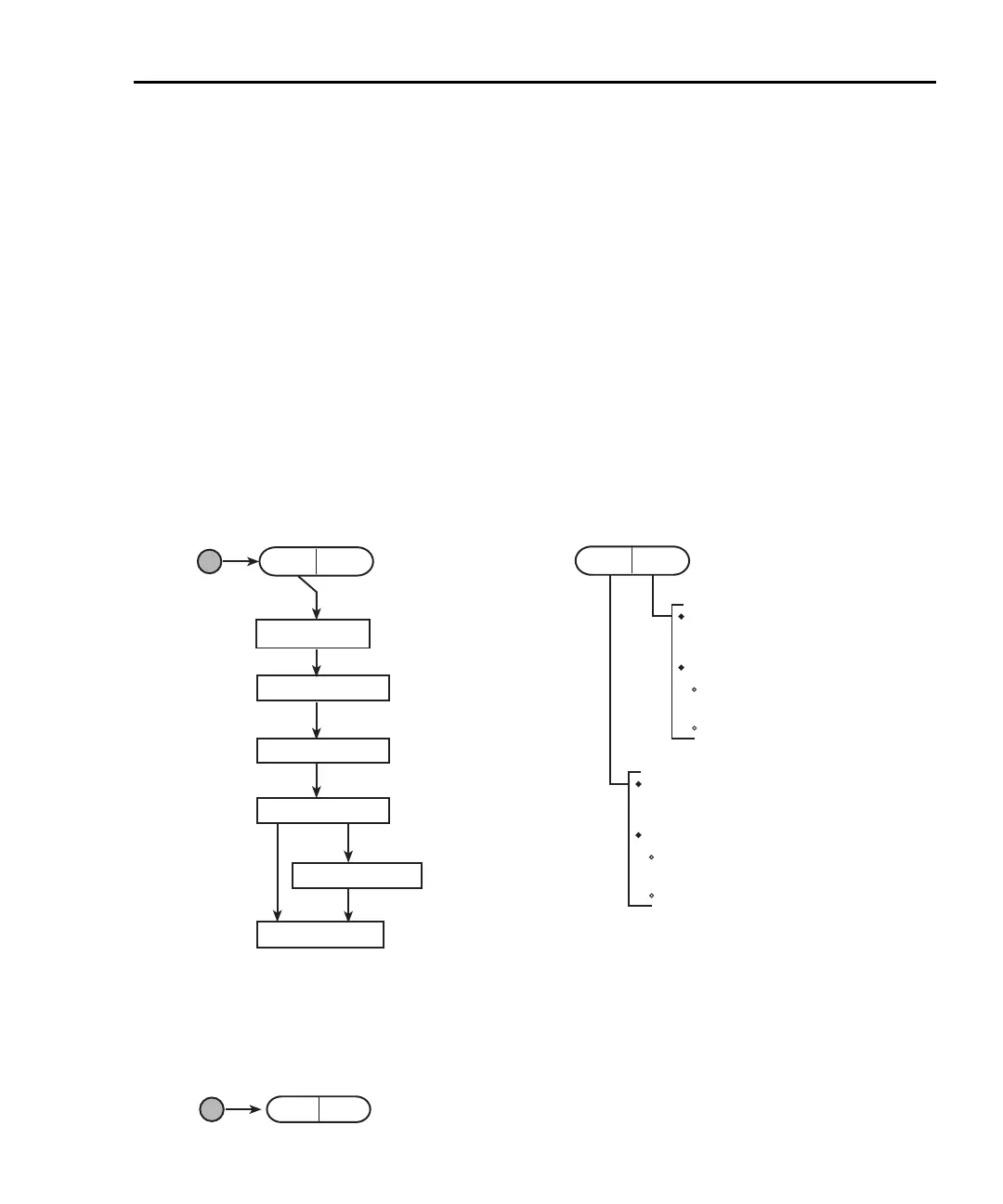

Figure 1-7
Simple scan operation
MIN CHAN: XXX
INT: SIMPLE
Display SIMPLE option
and press ENTER
Specify minimum
channel (XXX) and
press ENTER
SHIFT
SCANSTEP
CONFIG
Press SHIFT
Press CONFIG (STEP)
MAX CHAN: YYY
Specify maximum
channel (YYY)
and press ENTER
TIMER? NO/YES
Display NO or YES
and press ENTER
YES
NO
xxH:xxM:xx.xxxS
Set timer interval in
hr:min:sec format and
press ENTER
RDG CT:xxxxxx
Specify reading count
and press ENTER
SCANSTEP
Press STEP or SCAN to start
scan
Timer interval specifies time
between scans.
Reading count:
Specifies number of scans
to be performed.
Specifies number of readings
to store in buffer.
Timer interval specifies time
between scanned channels.
Reading count:
Specifies number of channels to be
scanned.
Specifies number of readings to store
in buffer.
Step 1. Configure simple scan: Step 2. Run simple scan:
SHIFT
SCANSTEP
HALT
Press SHIFT
Press HALT (SCAN)
Step 3. Disable scan mode:
To Next Page
