Keysight Technologies X Series Service Guide

Keysight N9010A EXA Service Guide 469
Assembly Replacement Procedures
Instrument Outer Case
Option PRC
Removal
1. Disconnect the instrument from ac power.

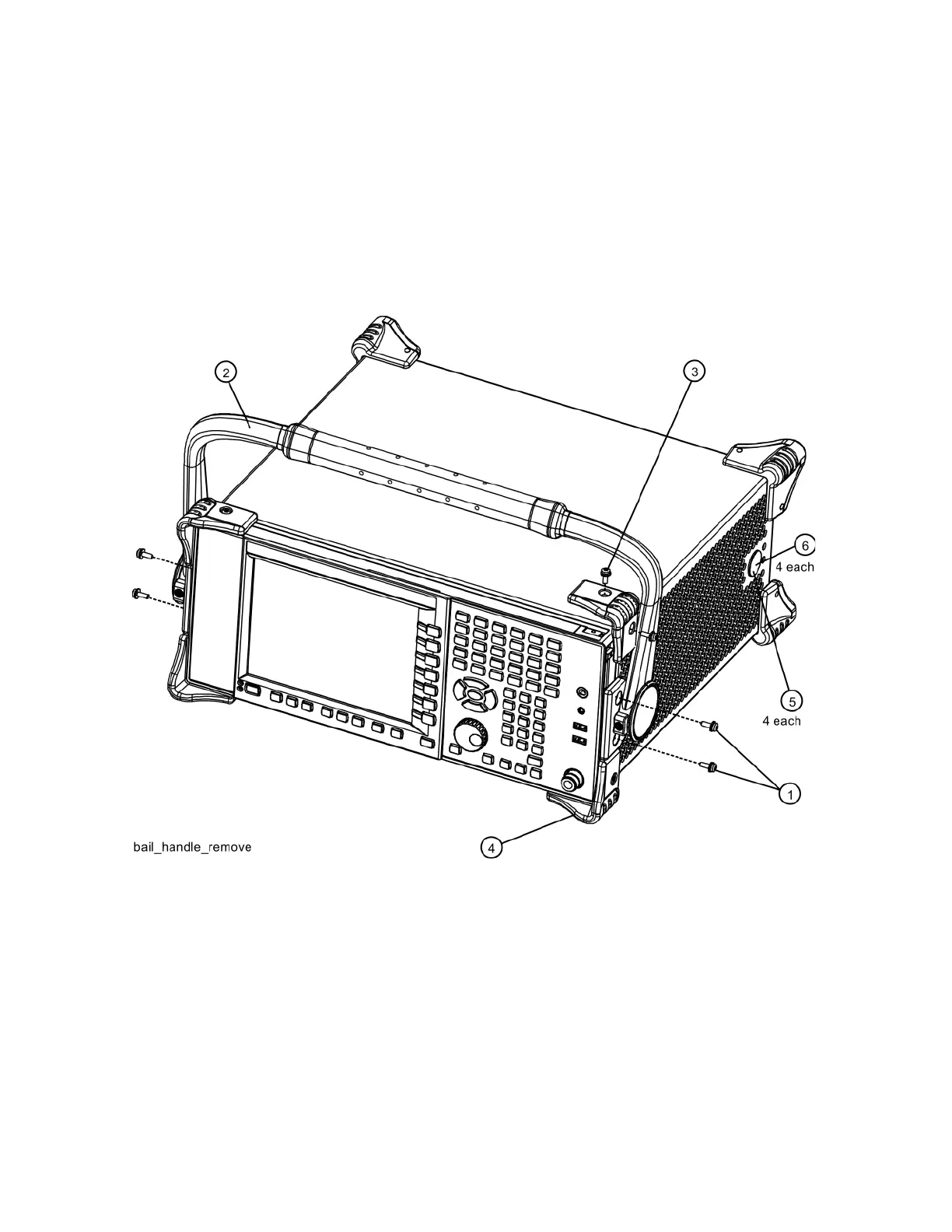

Refer to Figure 15-4. Using the T-20 driver, remove the four screws (two
on each side) (1) that hold the bail handle (2) to the front frame.
Figure 15-4 Bail Handle Removal
2. Using the T-20 driver, remove the four screws (two on each side) (6) that
hold the strap handle plugs (5) in place.
