528 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
L.O. Synthesizer Assembly
L.O. Synthesizer Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the instrument top brace. Refer to the Top Brace and Reference
Bracket removal procedure.
3. Refer to Figure 15-52. Remove the cables W4 and W6 from the L.O.
Synthesizer assembly (1) using the 5/16 inch wrench.
4. The L.O. Synthesizer assembly can now be unplugged from the
motherboard by pulling up on the board and lifted out of the chassis.

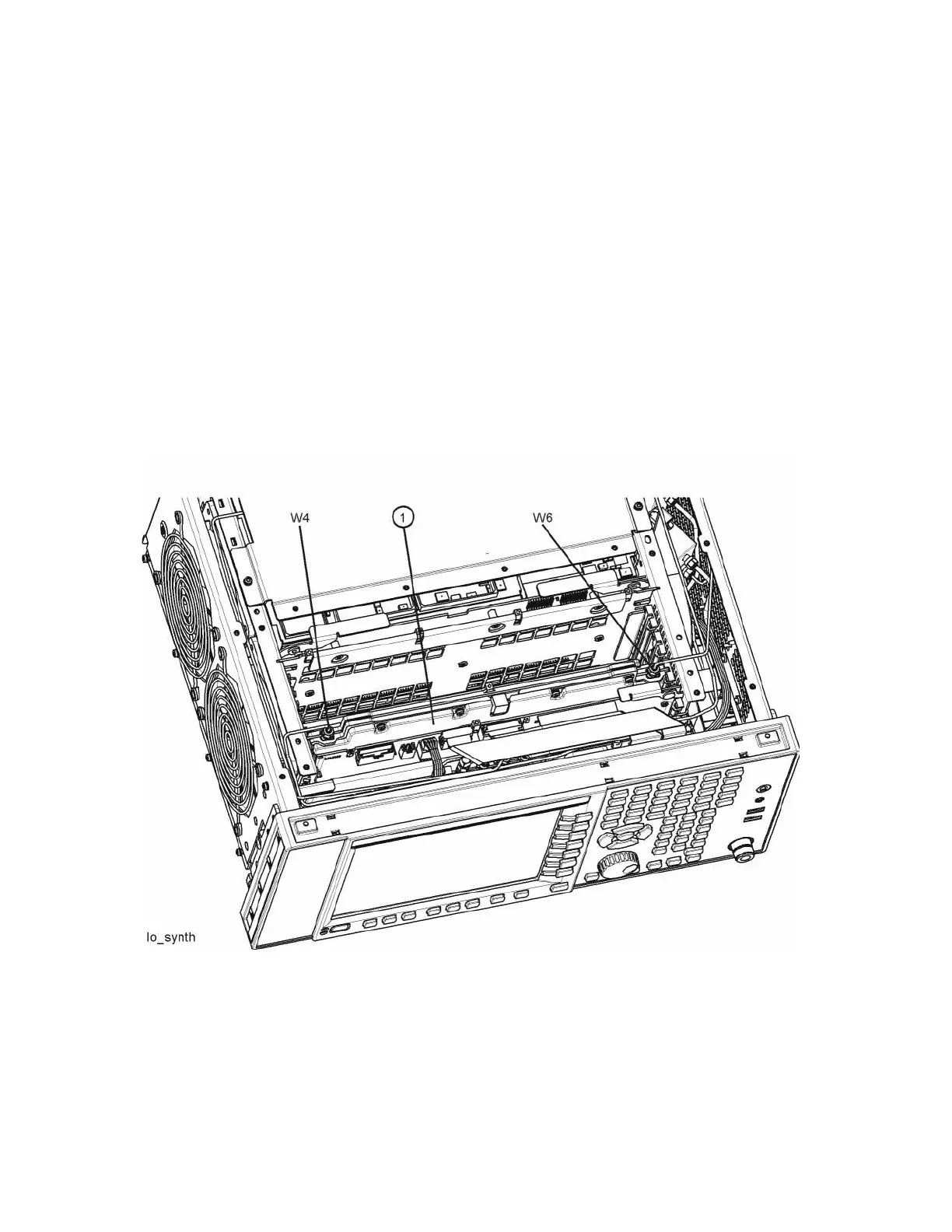

Figure 15-52 L.O. Synthesizer Assembly Removal
