Assembly Replacement Procedures
Front Frame Assembly
Front Frame Assembly Components - LCD

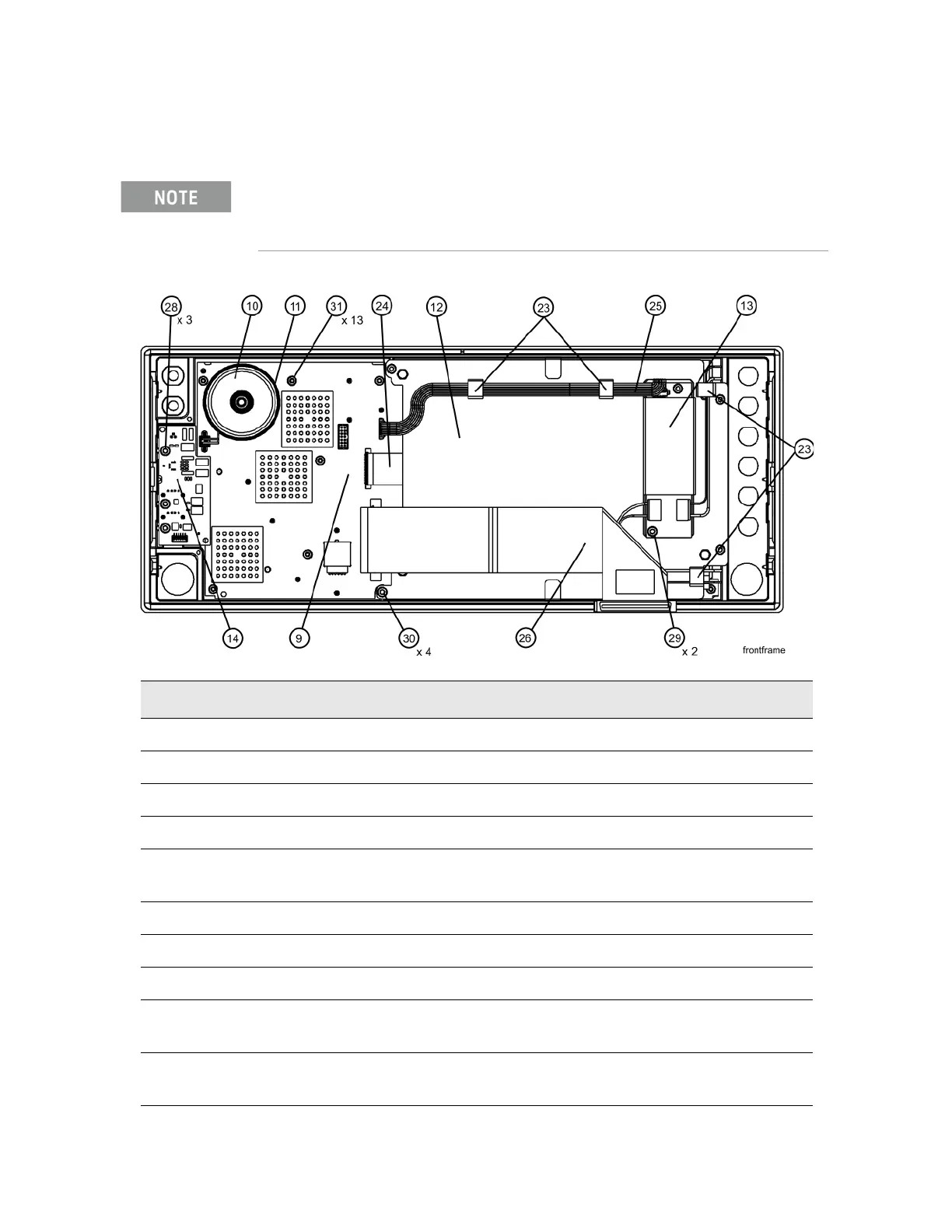

Figure 15-90 Front Frame Assembly Parts Locator - LCD
Access to any of the Front Frame assemblies requires removal of the Front Frame Assembly from
the chassis.
Item Reference Designator Description
9
A1A2 Front Panel Interface Board
10
A1A2MP1 Speaker
11
A1A2MP2 Speaker Foam
12
A1A3 Liquid Crystal Display
13
A1A4 Inverter Board (display backlight power) Serial number
< MY51250000, SG51250000
14
A1A5 Front Panel Daughter Board
23
A1MP10-13 Cable Clamp (Front Panel Cables)
24
A1W1 Flex Circuit, Display to Front Panel Interface Board
25
A1W2 Power Cable, Front Panel Interface Board to Inverter
Board
26
W1 Cable, Front Panel Interface Board to Motherboard
(Ribbon)
