Keysight Technologies X Series - Analog I.F. (Aif);Digital I.F. (DIF) Assembly; Removal

Keysight N9010A EXA Service Guide 555
Assembly Replacement Procedures
Analog I.F. (AIF)/Digital I.F. (DIF) Assembly
Analog I.F. (AIF)/Digital I.F. (DIF) Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the rear panel. Refer to the Rear Panel removal procedure.
3. Refer to Figure 15-74 and Figure 15-75. Depending on the age of your
instrument and the installed options, remove the appropriate cables from
the bottom of the DIF assembly.

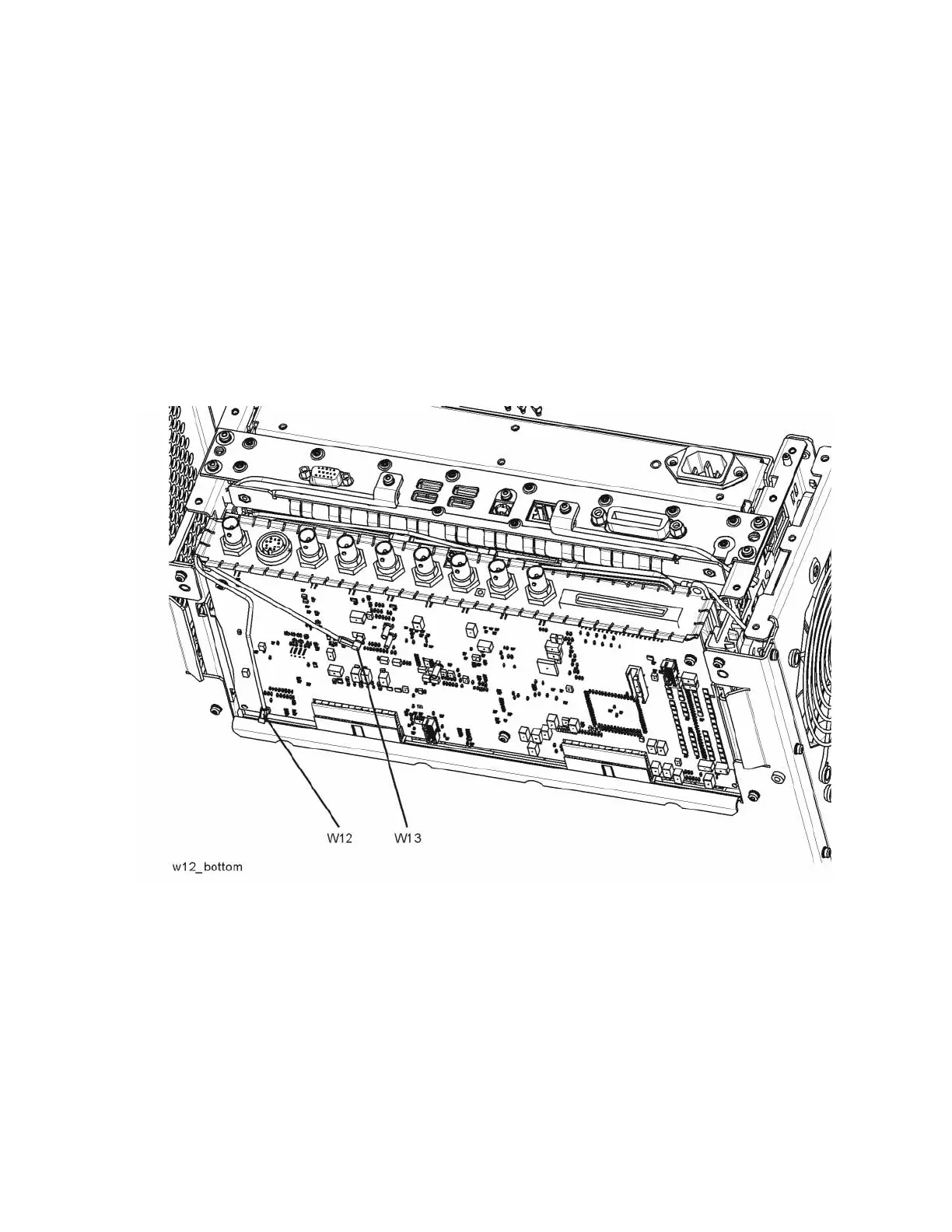

Figure 15-74 W12, W13 Removal - Standard Instruments
