Keysight N9010A EXA Service Guide
5
13
Assembly Replacement Procedur
es
RF Ar
ea (Option 532, 544)
Low Band Switch and Coaxial Switch
Options DP2, MPB, B40
Removal
1.
Refer to
Figur
e 15-41
. Remove semi-rigid coax cables W3, W45, W46,
W47, and W48.

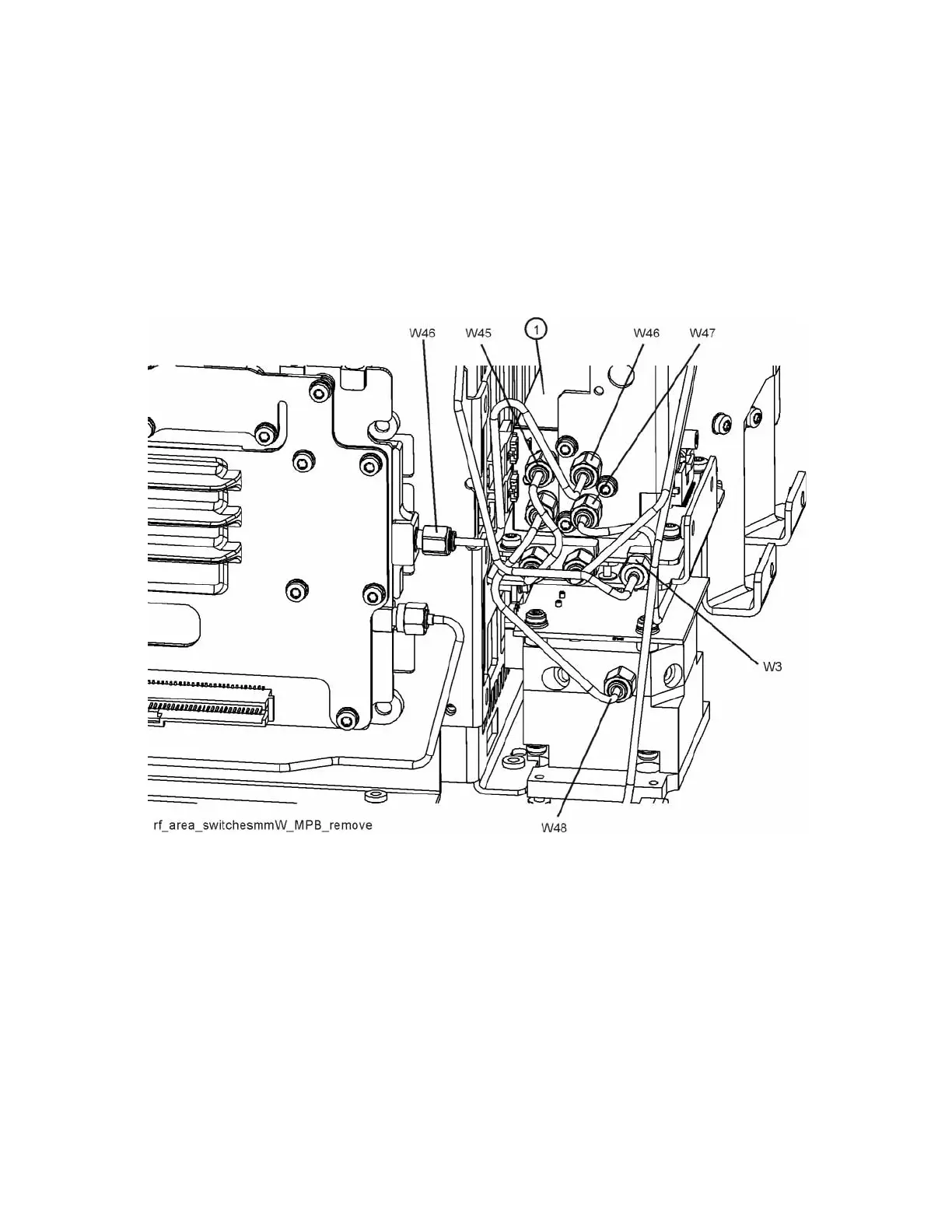

Figure 15-41
Remove Semi-Rigid Cables
512
514
