Keysight Technologies X Series - Front Frame Assembly Components - LED

584 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
Front Frame Assembly
Front Frame Assembly Components - LED

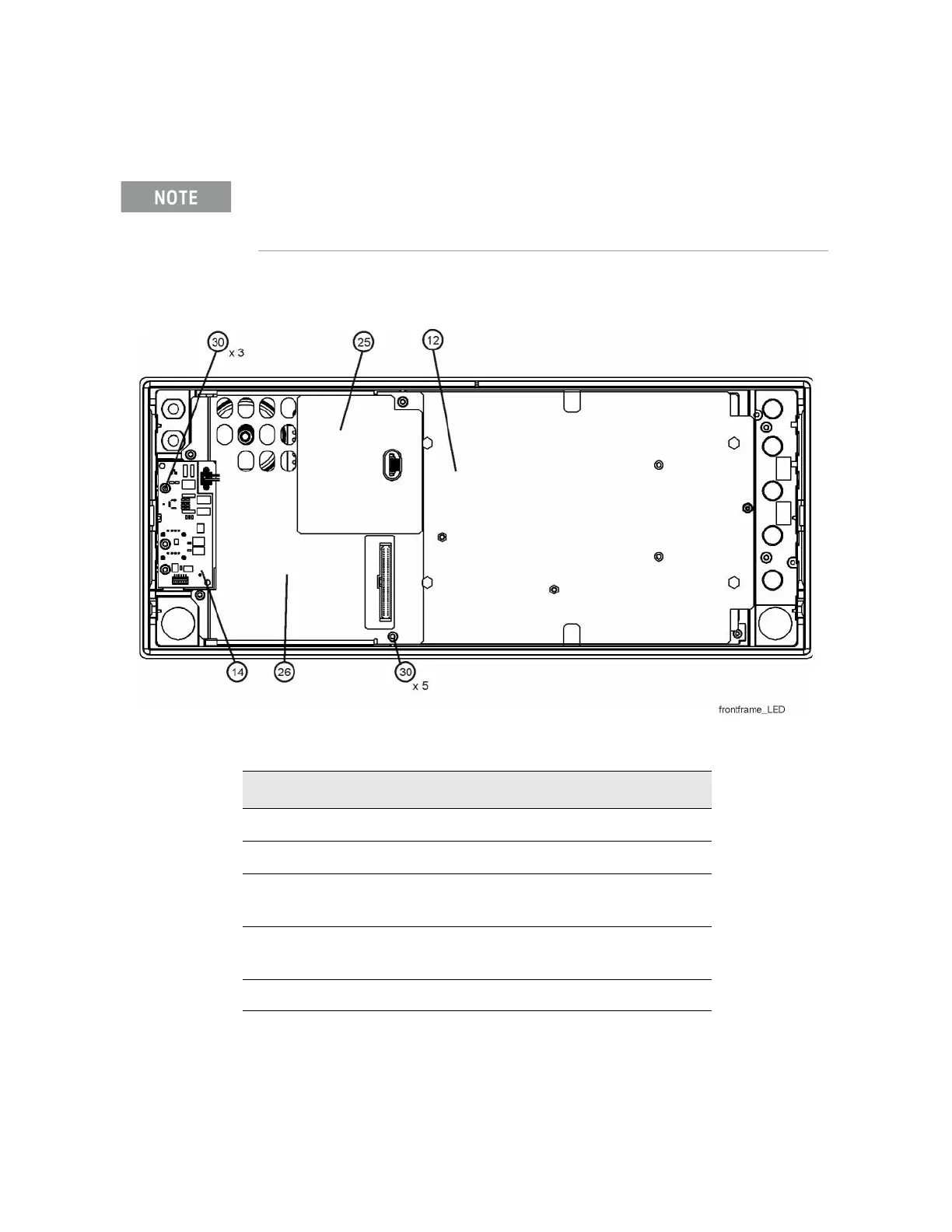

Figure 15-93 Front Frame Parts - LED
Access to any of the Front Frame assemblies requires removal of the Front Frame Assembly from
the chassis.
Item Description
12
A1MP14 Display Bracket
14
A1A5 Front Panel Daughter Board
25
A1MP24 Magnetic Shield (Display Bracket to
Front Panel Interface/Speaker Bracket)
26
A1MP23 Front Panel Interface/Speaker
Bracket
30 Screw, Front Panel Daughter Board()
