522 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
RF Front End Assembly - Options 503, 507, 513, 526

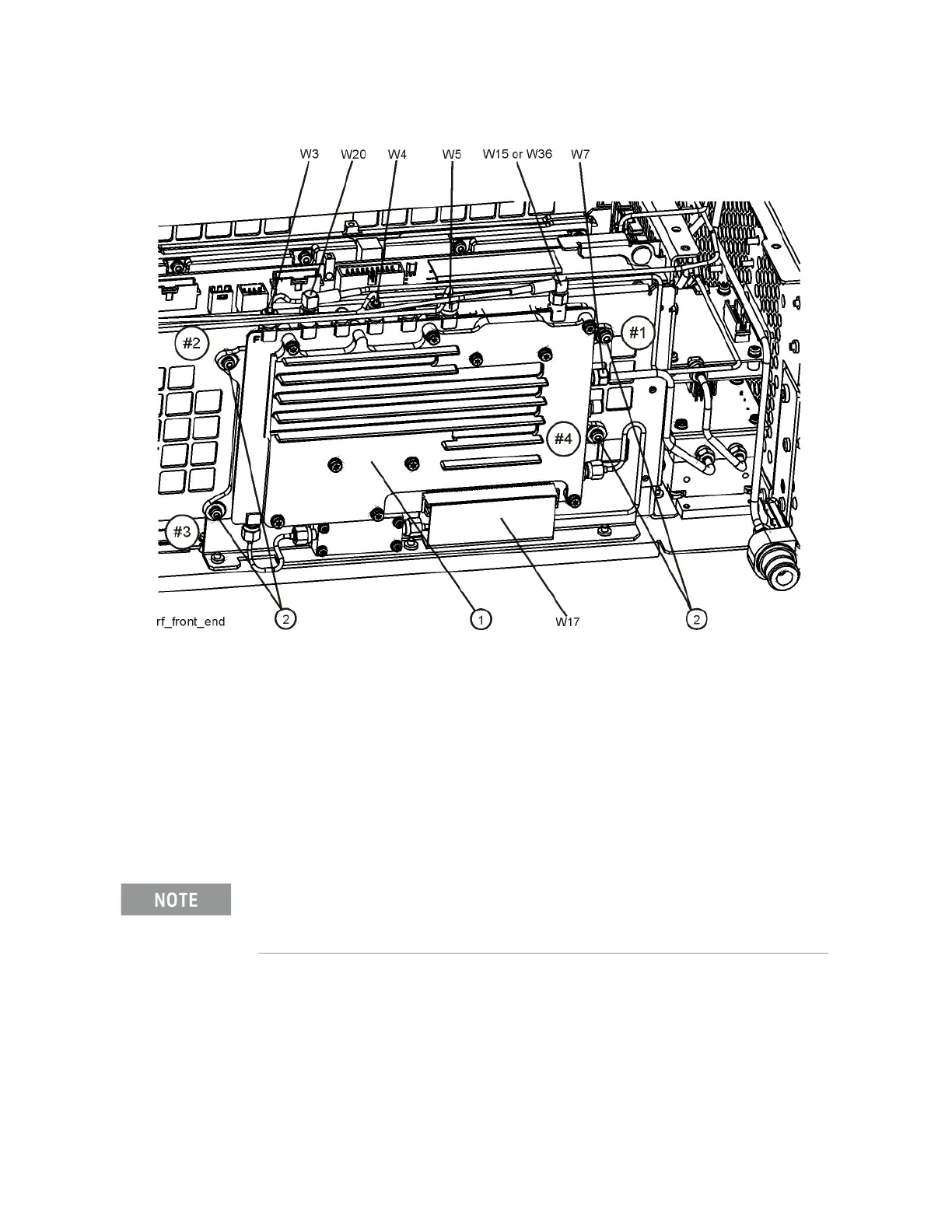

Figure 15-48 RF Front End Assembly Removal
Replacement
1. Refer to Figure 15-48. Place the RF Front End Assembly into the chassis.
Replace the four screws (2). Torque to 9 inch-pounds in the sequence
shown, starting with #1.
2. Reattach ribbon cable W17 to the RF Front End Assembly.
3. Reattach the cables W3, W4, W5, W7, W15 or W36, and W20 to the RF
Front End Assembly (1). Torque the semi-rigid cables to 10 inch-pounds.
4. Replace the front panel. Refer to the Front Frame Assembly replacement
procedure.
5. Replace the instrument top brace. Refer to the Top Brace and Reference
Bracket replacement procedure.
6. Replace the instrument outer case. Refer to the Instrument Outer Case
replacement procedure.
W7 will not be present in instruments with Option 503.
