Keysight Technologies X Series Service Guide

518 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
RF Area (Option 532, 544)
YTF Preselector
Removal
1. Refer to Figure 15-45. Remove cables W7 and W8 (or W47 and W48 if
Option MPB is installed) from the YTF Preselector (1).

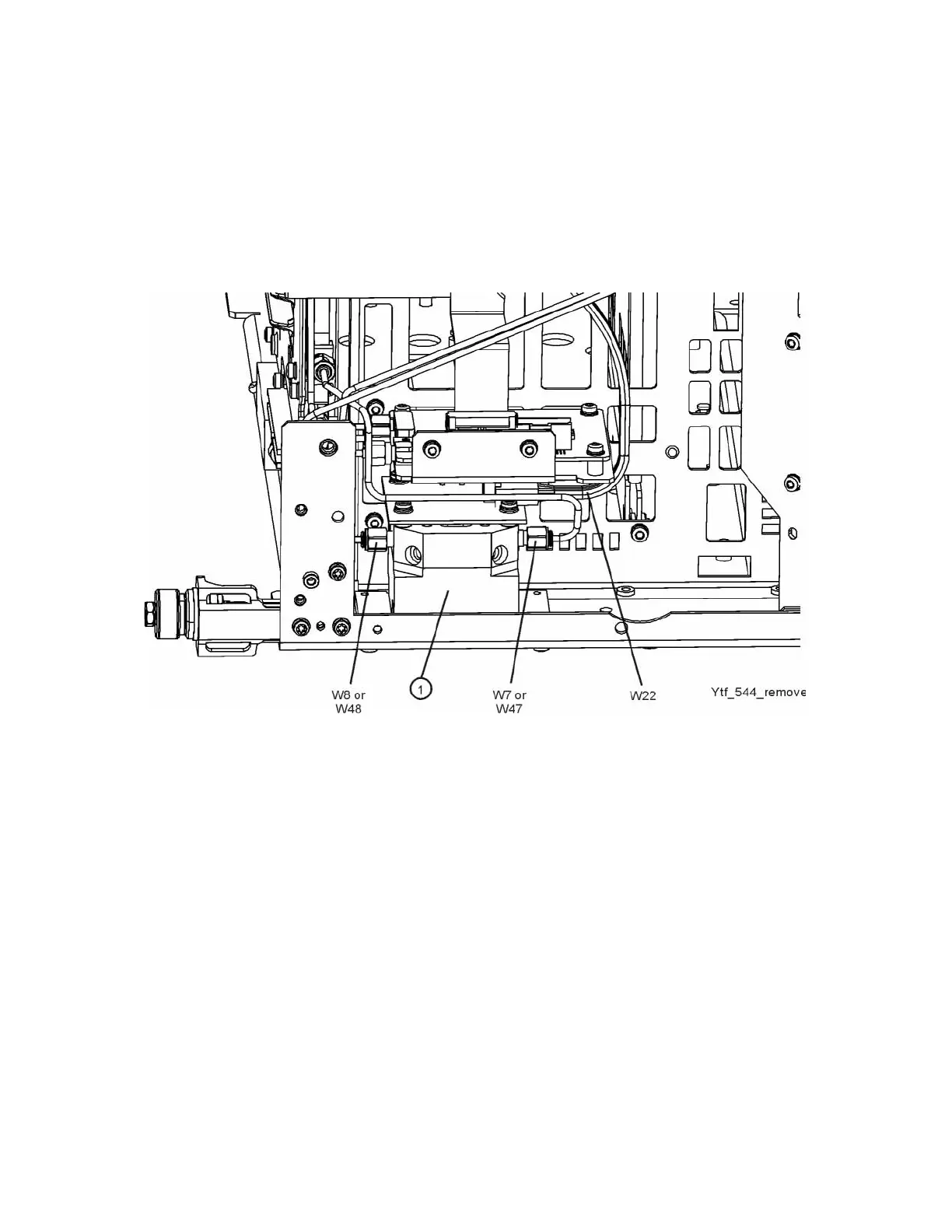

Figure 15-45 YTF Preselector Removal
2. Remove the wire harness W22.
