552 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
Disk Drive
A4A1 CPU Memory Card
(N9010A-PC6 and N9010A-PC7 only)
1. Refer to Figure 15-72. Remove the disk drive as described on page 542.
The memory card (2) can be removed by pushing on the memory card
and it will spring out. To install the memory card push it into the slot until
you feel the spring catch. Then replace the disk drive.

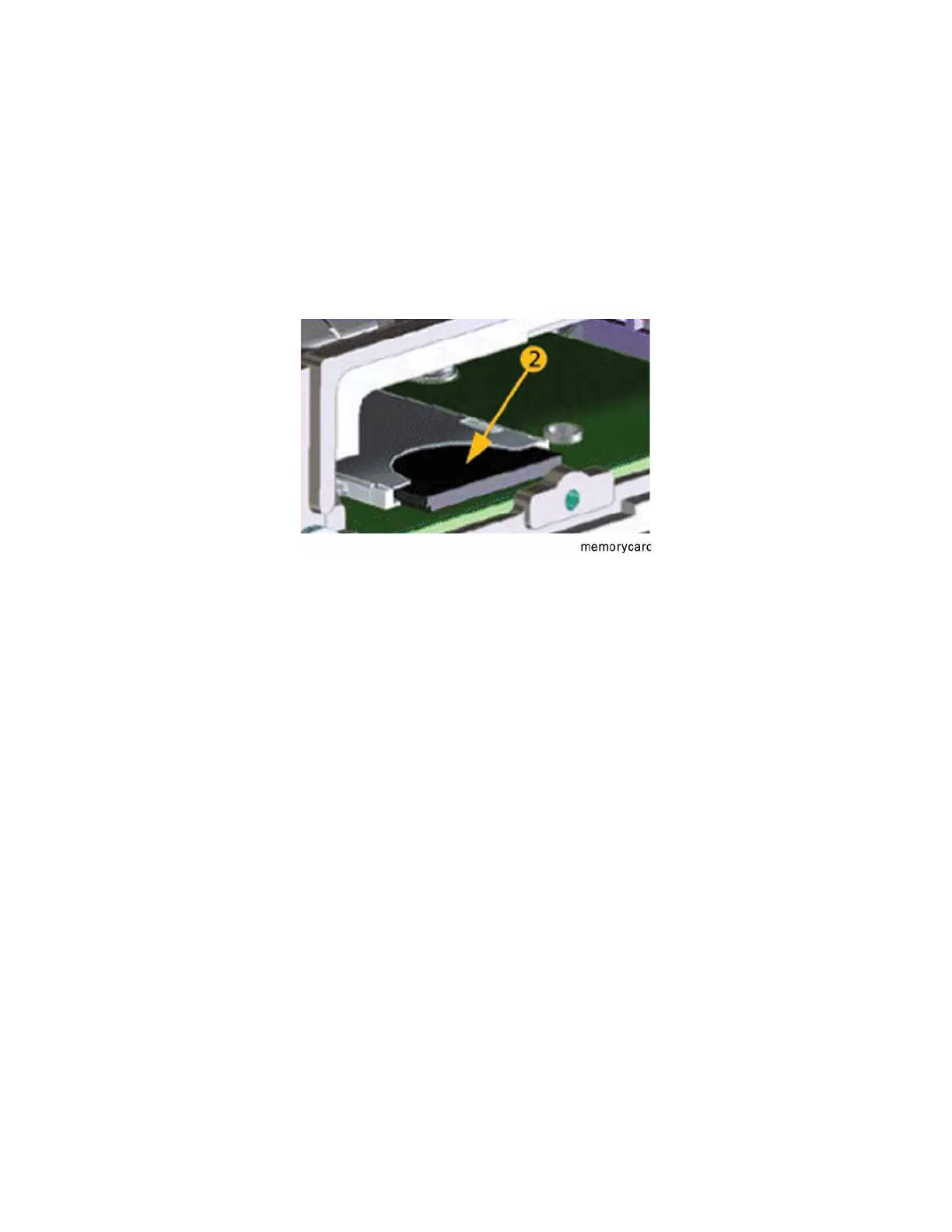

Figure 15-72 CPU Memory Card Removal
